Newest 60A 12V 24V 48V MPPT Solar Charge Controller V123 w/Cloud service for Lead-acid battery

Newest 60A 12V 24V 48V MPPT Solar Charge Controller V123 w/Cloud service for Lead-acid battery

Product description
Shipping & Return

60A MPPT Solar Charge Controller with Cloud service function for Android and IOS

  • The V123 with CloudBox has internet service by Wifi and Bluetooth
  • 100% MPPT controller
  • Intelligent Maximum PowerPoint Tracking technology
  • Built-in DSP controller with high performance
  • Automatic battery voltage detection 12V/24V/48V
  • Three-stage charging optimizes battery performance
  • Multi-function LCD
  • Output limited current protection
  • Overcharge protection
  • Over-temperature protection
  • Easy to be mounted on the wall
  • No need for an extra device to be in parallel
  • No limited quantity to be in parallel
  • Suitable for battery types of sealed lead acid, vented, and Gel battery

Model No.

60A-V123+CloudBox

Charging Technology

MPPT / Maximum power point tracking

Charging Mode

3-stage

Constant current(MPPT)

Constant voltage(Absorption voltage)

Floating charge

System Type

DC12V/24V/36V/48V Recognition automatically

Automatic Select Voltage Range

12V system (DC9V-DC15V)

24V system (DC18V-DC29V)

48V system (DC40V~DC60V)

Soft Start Time

≤1S

Dynamic Response and Recovery Time

100us

Max Efficiency

≥98.2%

PV Utilization

≥99%

Self Consumption

≤1.2W

Input Specification



Voc Range of PV

( Make sure the Voc of PV meets the requirement as right.

Voc is 1.5 or 2 times than battery, then it’s the best efficiency. )

12V system (DC20V~DC80V)

24V system (DC37V~DC105V)

48V system (DC72V~DC160V)

Maximum PV Module Open Circuit Voltage

(Never over max PV Voc)

For 12V battery: 80V

For 24V battery: 105V

For 48V battery: 160V

The Maximum Nominal PV power

12V system (720W)

24V system (1440W)

48V system (2800W)

Output Specification

Selectable Battery Type


Vented/ Sealed / Gel / NiCd battery

(Defined voltage by user)

For a 12V battery, you could set the voltage from 12V-17V.

For a 24V battery, you could set the voltage from 24V-34V.

For a 48V battery, you could set the voltage from 48V-68V.

Absorption Charging Voltage

Refer to the manual

Floating Charging Voltage

Refer to the manual

Overcharging Protection Voltage

12V system (15V)

24V system (30V)

48V system (60V)

Rated Output Current

60A

Output Voltage Ripple-peak

100mV

Output Voltage Accuracy

≤±1%

Indicating



LCD

Refer to the manual

Protection Function

Temperature Protection

75 °C/ 167℉

Fan-on Temperature

>45 °C/ 113℉

Fan-off Temperature

<40 °C / 104℉

PV Reverse Polarity Protection

Yes (When Voc<100V only)

PV Over-voltage Protection

Yes(When Voc>180V, the controller will be burnt.)

Battery Overcharge Current Protection

Yes

Battery Overcharge Voltage Protection

Yes

Battery Low Voltage Protection

Yes

Enclosure

Acoustic Noise

≤40dB

Cooling Way

Forced air cooling

Components

Industrial grade

Size (cm)

21.5*11.5*5 cm/8.46*4.52*1.96 in

Net Weight(Kg)

1.3kg/2.86lb

Gross Weight(Kg)

1.4kg/3.08lb

Safety

EN 62109-1 EN 60730-1 EN IEC 61000-6-3  EN IEC 61000-6-1

Protection Category

IP21

Environmental Condition

Indoor

Operating Temperature

-20℃ ~ +55℃ / -4℉ ~ + 131℉

Storage Temperature

-40℃ ~ +75℃ / -40℉ ~ + 167℉




Content Included

One MPPT solar controller

One Wifi box

A set brackets and screws

One manual

Please download the Android APP from Here

Please download the IOS APP from Here.

Please download the manual from here.

Reminder:

Please choose the right warehouse for your purchase.

The CN warehouse can ship to the world.

The US warehouse only ships to the USA.

The DE warehouse only ships to European Union.

The AU warehouse only ships to Australia.

The UK warehouse only ships to the United Kingdom.




Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

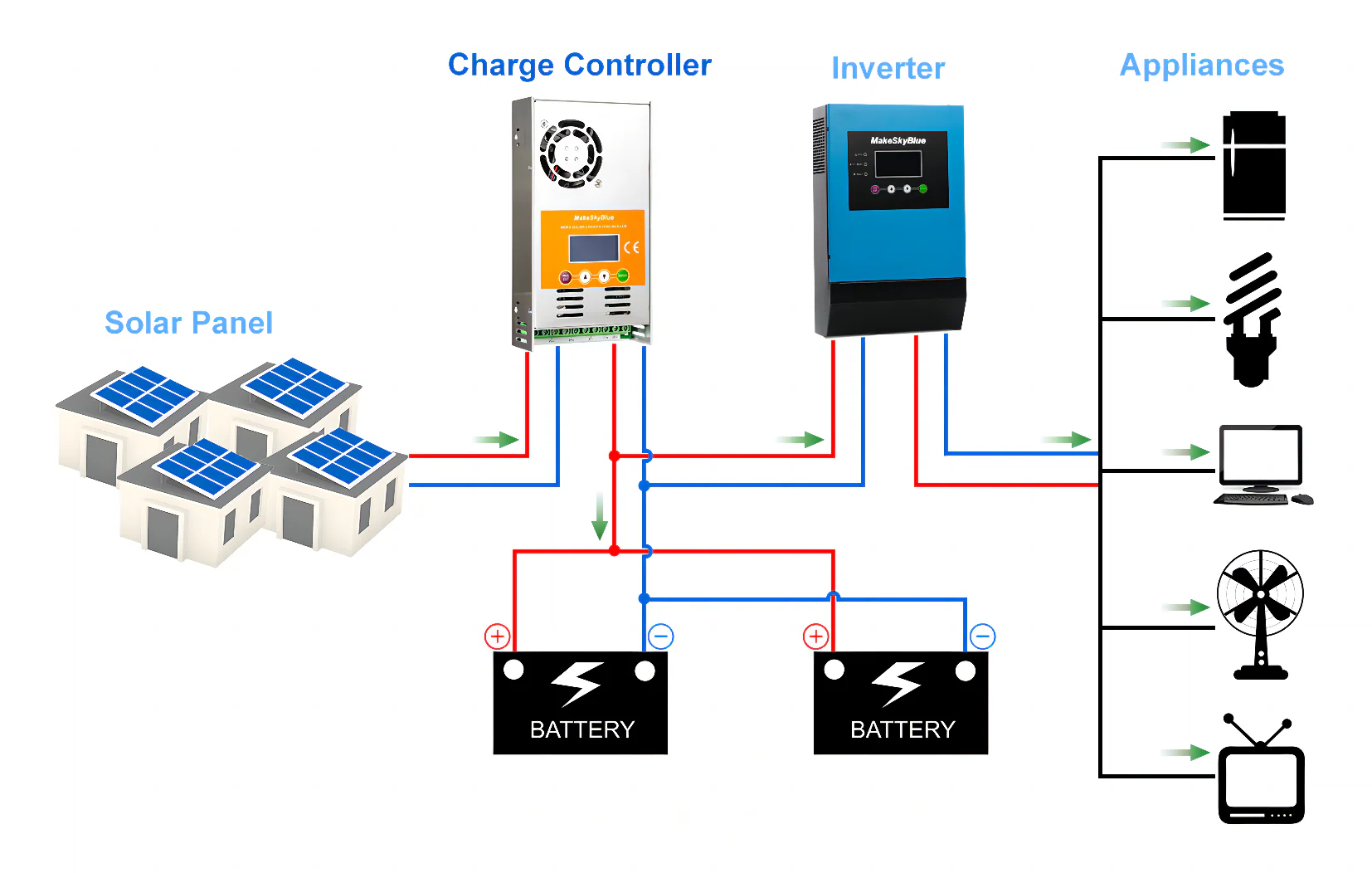

Complete Solar Power System Integration

Seamlessly connects solar panels to batteries and inverter for comprehensive home power management. Compatible with all battery types including WET, EFB, MF, CA/CCA, AGM, and GEL. Powers household appliances through efficient charge control and power conversion system.

Newest 60A 12V 24V 48V MPPT Solar Charge Controller V123 w/Cloud service for Lead-acid battery

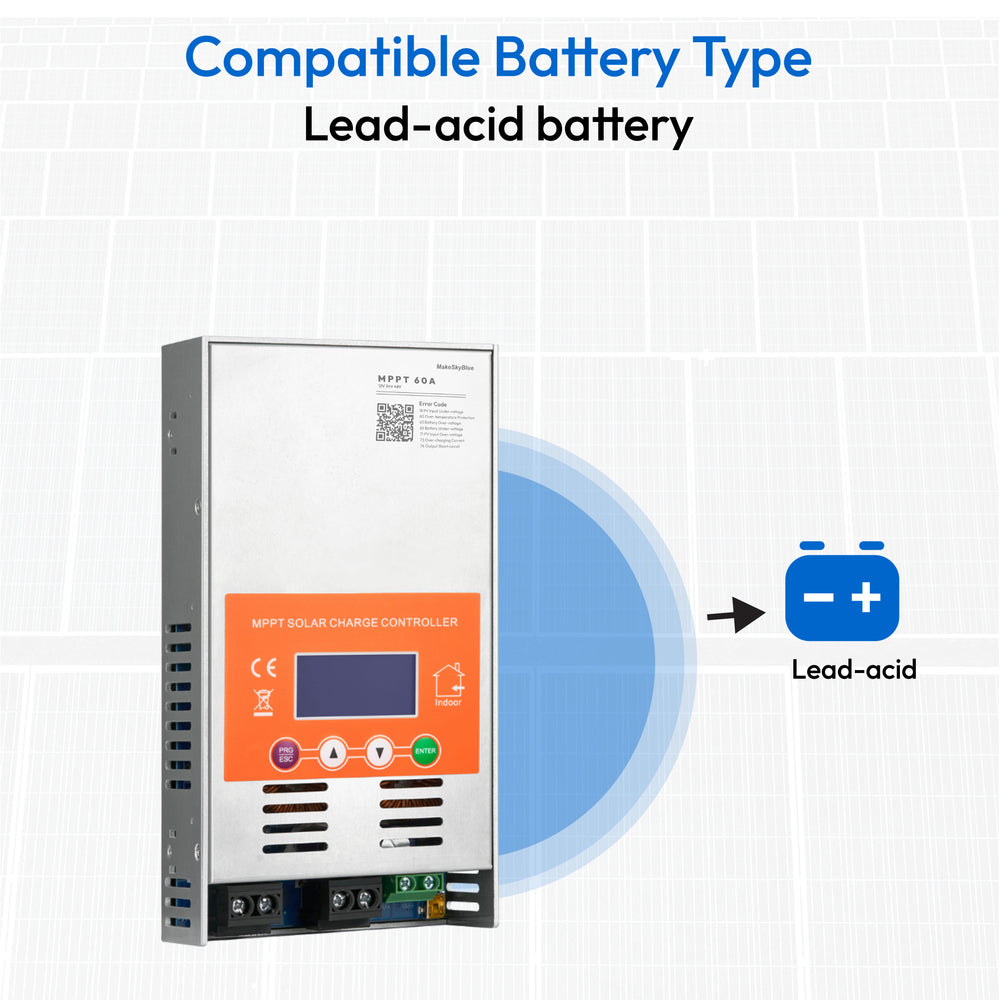

Compatible Battery Type

The 60A MPPT Solar Charge Controller is designed to work seamlessly with Lead-Acid batteries, making it a versatile solution for various solar power applications. Its compatibility ensures that users can efficiently charge and maintain their Lead-Acid battery banks.

Newest 60A 12V 24V 48V MPPT Solar Charge Controller V123 w/Cloud service for Lead-acid battery

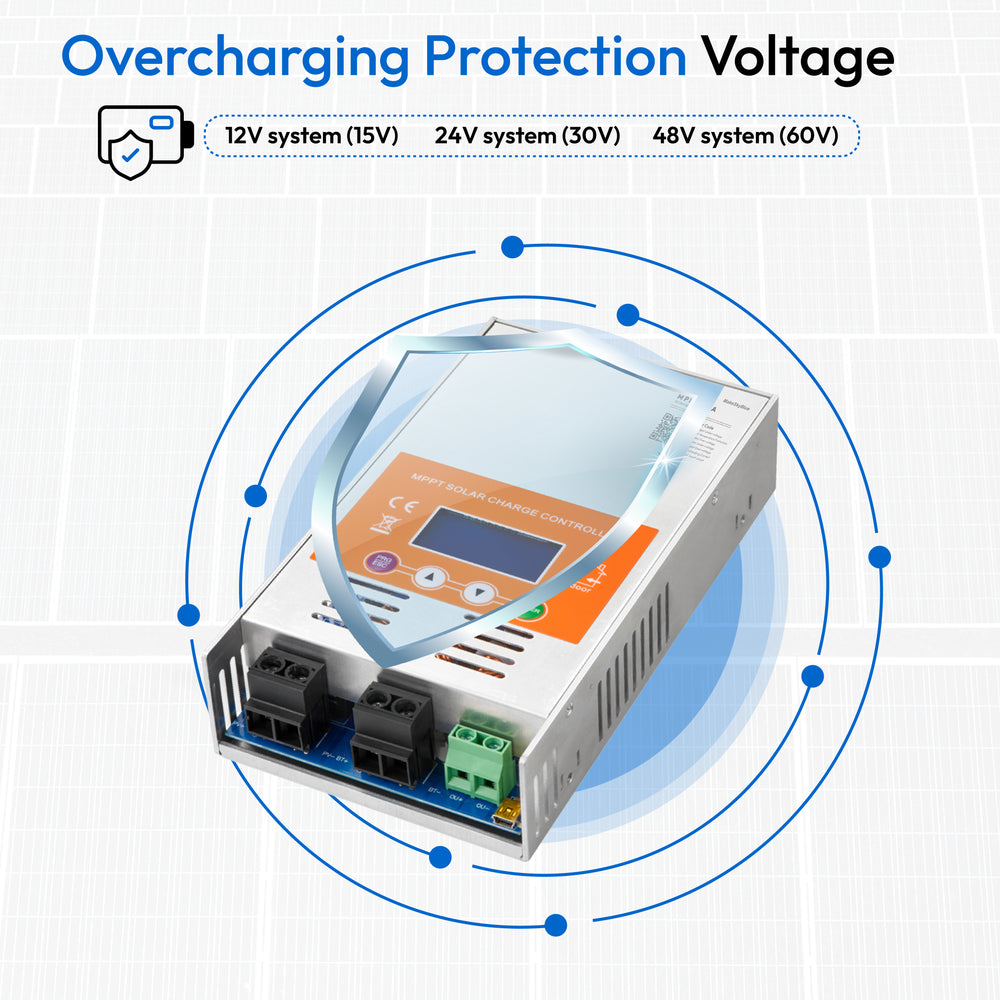

Overcharging Protection Voltage

This controller features advanced overcharging protection with specific voltage thresholds for different systems: 15V for 12V systems, 30V for 24V systems, and 60V for 48V systems. This protection mechanism safeguards the battery from damage due to overcharging, enhancing its lifespan and performance.

Newest 60A 12V 24V 48V MPPT Solar Charge Controller V123 w/Cloud service for Lead-acid battery

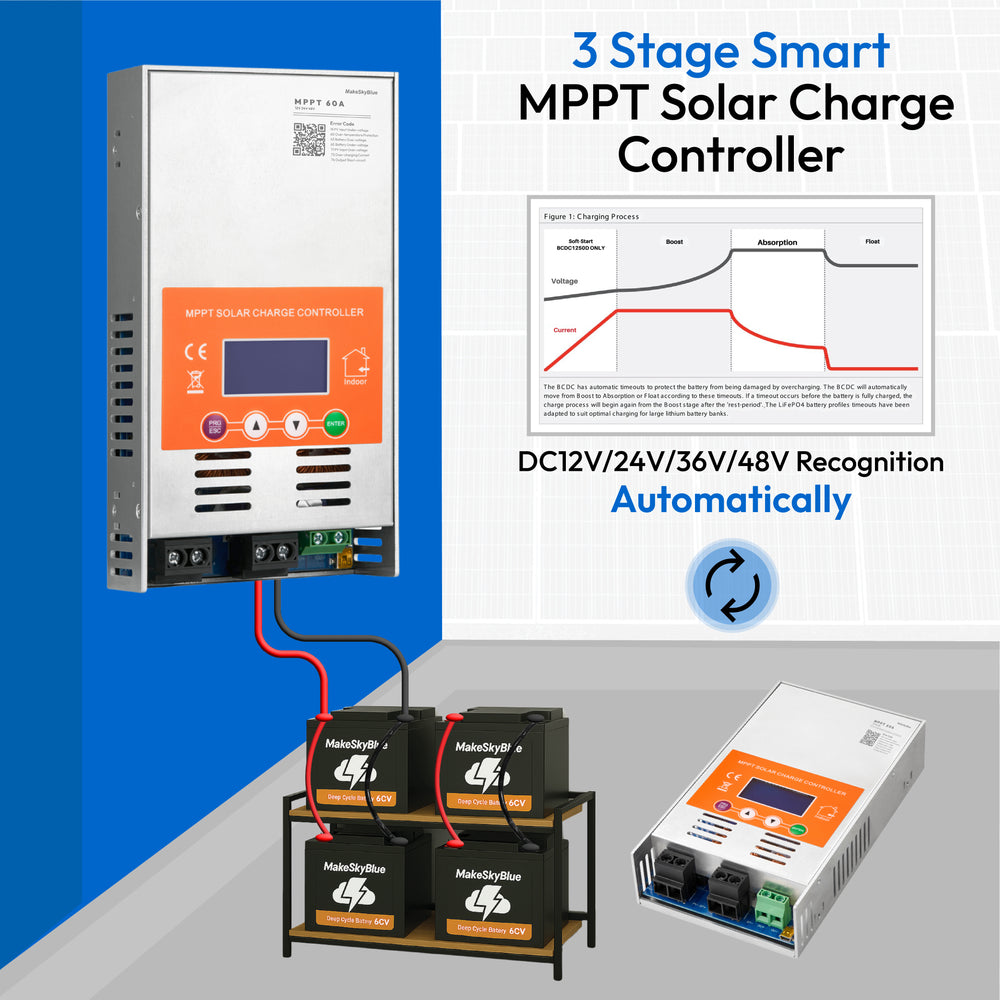

Stage Smart MPPT Charging

The controller employs a sophisticated 3-stage charging algorithm (Boost, Absorption, Float) that automatically recognizes the system voltage (DC12V/24V/36V/48V). This intelligent charging process optimizes energy conversion and ensures efficient battery charging. The MPPT technology tracks the maximum power point automatically, maximizing the energy harvested from the solar panels.

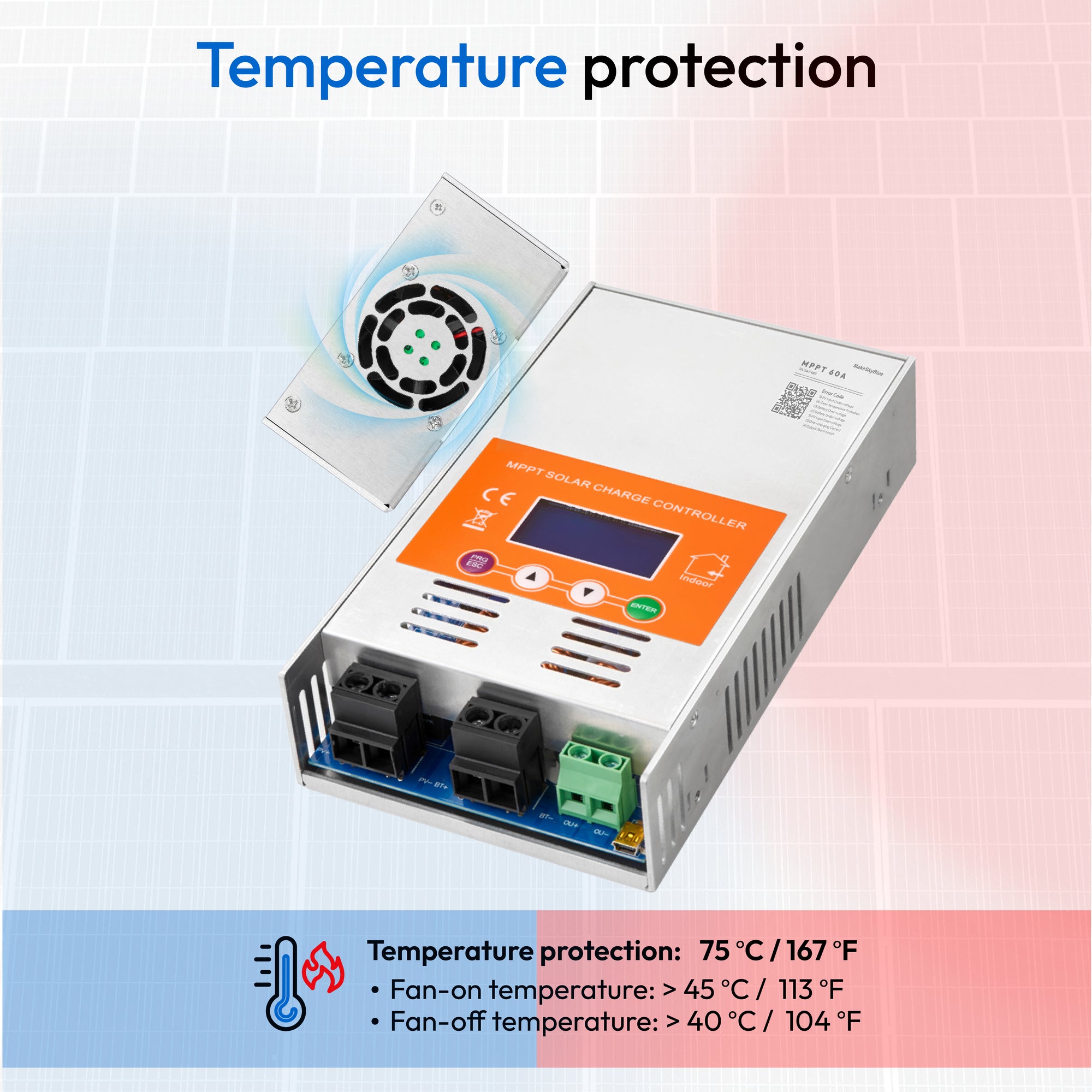

Temperature Protection with Automatic Cooling

Built-in thermal management system with automatic fan control and temperature monitoring up to 75°C/167°F. Cooling fan activates at 45°C/113°F and deactivates at 40°C/104°F, ensuring optimal performance and extended lifespan under extreme operating conditions.
