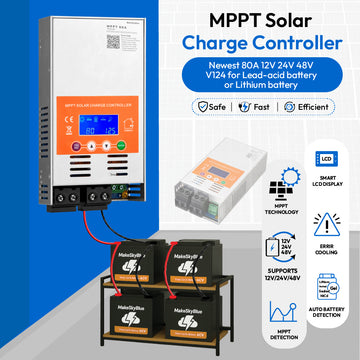

Newest 80A 12V 24V 48V MPPT Solar Charge Controller V124 for Lead-acid battery or Lithium battery
80A 12V/24V/48V MPPT Solar Charge Controller
➤ 80A MPPT Solar Charge Controller
➤ MPPT Technology
➤ Built-in DSP Controller with high performance
➤ Automatic Battery Voltage Detection for 12V / 24V / 48V
➤ 3-Stage Charging optimizes battery performance
➤ Overcharge Protection
➤ PV Polarity Reverse Protection
➤ Output Limited Current Protection
➤ Over-Temperature Protection
➤ Suitable for Multiple Battery Types – sealed lead acid, vented gel battery, etc.
➤ V124 or V124 with WiFi (Remote Control) – Model 80A-V124
| Specification | Value |
|---|---|
| Model | 80A-V124 |
| RATED OUTPUT CURRENT | 80A |
| Charging mode | 3-stage: constant current (MPPT), constant voltage, floating |
| Battery voltage automatic recognition | 12V system (DC9V-DC15V) 24V system (DC18V-DC29V) 48V system (DC40V~DC60V) |
| Overcharging protection voltage | +1.5V |
| Limited current protection | 42A*2 |
| Max efficiency | ≥98.1% |
| PV utilization | ≥99% |
| INPUT | |
| Maximum PV Array Power | For 12V Battery: 960W For 24V Battery: 1920W For 48V Battery: 3400W |
| PV Array Open Circuit Voltage (Voc) @Operating Voltage | For 12V Battery: 20~80VDC For 24V Battery: 37~100VDC For 48V Battery: 72V~160VDC |
| PV Over-voltage Protection (Open Circuit Voltage) | For 12V Battery: 90VDC For 24V Battery: 100VDC For 48V Battery: 160VDC |
| OUTPUT | |
| Selectable battery type | For 12V/24V/48V Battery: Vented/ Sealed / Gel / NiCd |
| Absorption Charging Voltage | Refer to Batteries charging reference |
| Floating Charging Voltage | Refer to Batteries charging reference |
| Overcharging protection voltage | +1.5V |
| Limited current protection | 82A |
| Temperature Coefficient | ±0.02%/℃ |
| Automatic temperature compensation | 14.2V-（max temperature-25℃）*0.3 |
| Output voltage ripple-peak | 100mV |
| Output voltage accuracy | ≤±1% |
| DISPLAY | |
| LCD display | PV voltage / Output power Battery voltage / Charging current Working mode / Temperature Protection mode |
| PROTECTION FUNCTION | |

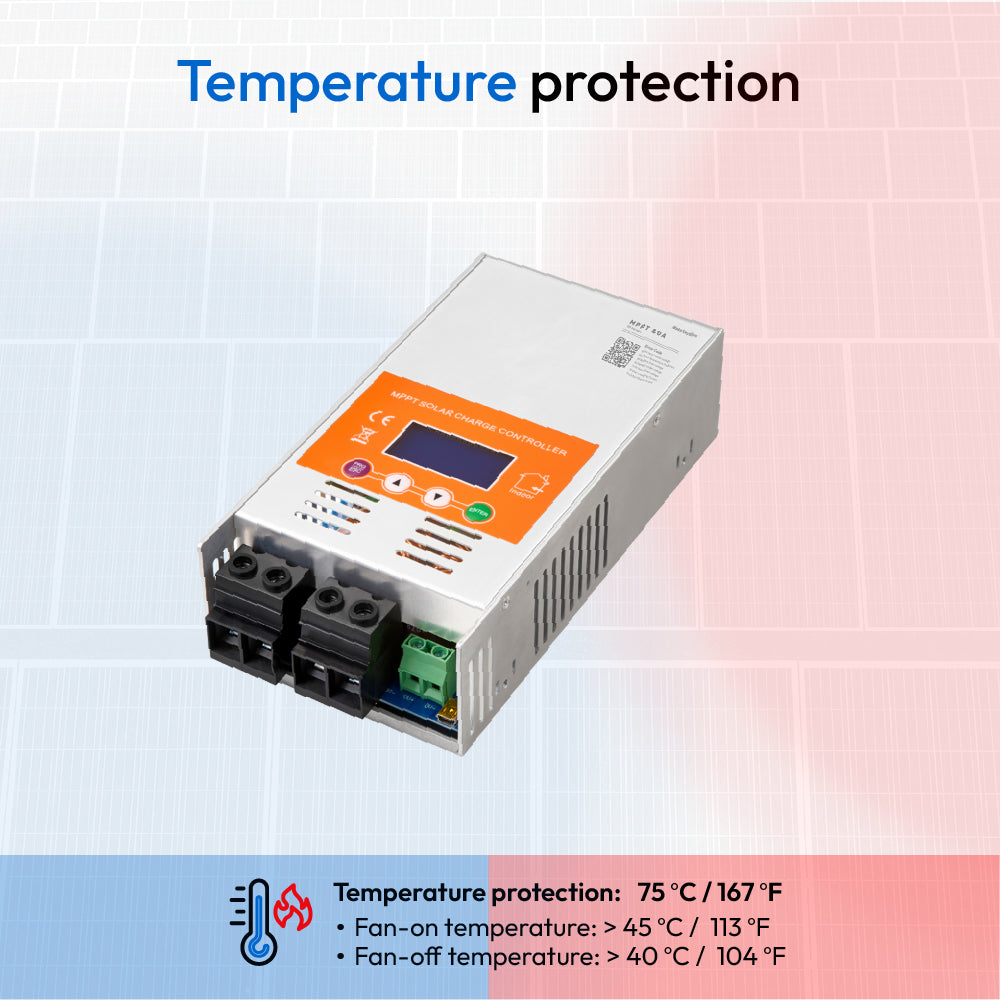

| Temperature protection | 75℃ |
| Fan-on temperature | >45℃ |
| Fan-off temperature | <40℃ |
| Overcharging protection voltage | +1.5V |
| Limited current protection | 82A |
| PHYSICAL PROPERTIES | |
| Acoustic noise | ≤40dB |
| Cooling way | Fan |
| Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides or fluorides |
| Components | Imported materials, According to EU standards, Industrial grade. |
| Humidity (Non-condensing) | 5% to 95% Relative Humidity |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +75℃ |
| Dimension, D x W x H (mm) | 215x125x50 |
| Net Weight (kg) | 1.2 |
| Gross weight(Kg) | 1.3 |
| Security Level | According to CE, PSE, FCC, EMC, EN60950 |
| Electromagnetic Compatibility | According to EN61000, EN55022, EN55024 |
| Enclosure | IP20 |
| Battery Type | Absorption Voltage (Constant voltage) | Floating Voltage | ||||
|---|---|---|---|---|---|---|
| 12V | 24V | 36V | 48V | 12V | 24V | |
| Batteries charging reference | ||||||
| Vented | 14.2V | 28.6V | 42.6 | 57.2V | 13.2V | 26.4V |
| Sealed | 14.5V | 28.8V | 43.2 | 57.6V | 13.8V | 27.6V |
| Gel | 14.5V | 28.8V | 43.2 | 57.6V | 13.8V | 27.6V |
| NiCd | 14.2V | 28.6V | 42.6 | 57.2V | 14.0V | 28.0V |
| Lithium |
Defined by users |
|||||
1 MPPT solar controller
1 set of parts for case mounted
1 English manual
