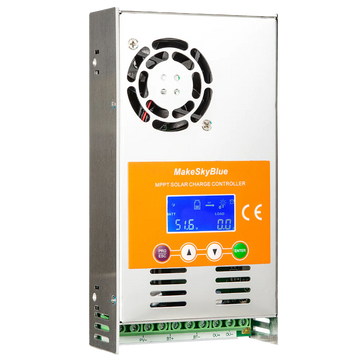

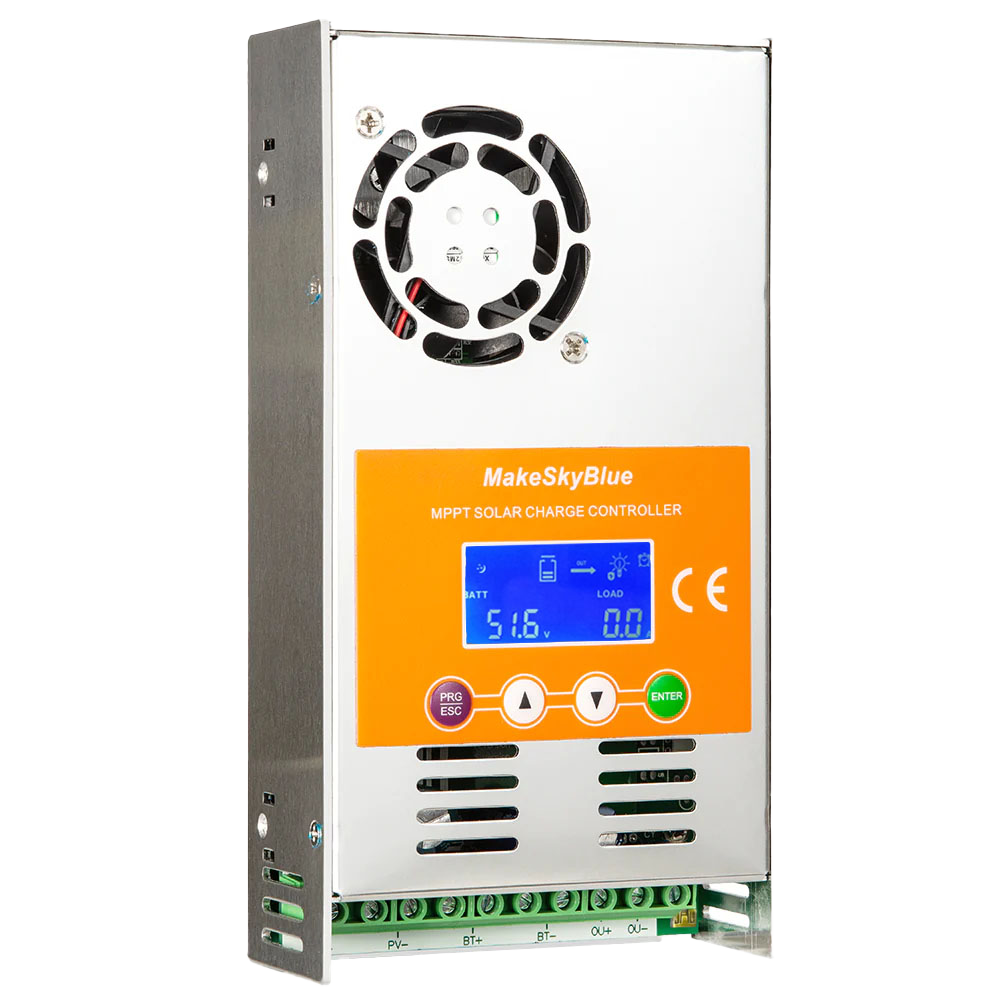

Newest 60A 48V MPPT Solar Charge Controller for Lithium battery V125
60A 48V MPPT Solar Charge Controller
📶 V125 with CloudBox – Internet connectivity via WiFi and Bluetooth
⚡ 100% MPPT Controller
🌞 Intelligent Maximum PowerPoint Tracking Technology
🖥️ Built-in High-Performance DSP Controller
📟 Multi-Function LCD Displays
🚫 Output Limited Current Protection
✅ Overcharge Protection
🌡️ Over-Temperature Protection
🪛 Easy Wall Mount Installation
🔗 No Extra Device Needed for parallel operation
♾️ Unlimited Parallel Connections Supported
🔋 Compatible Battery Type – Lithium batteries
|
Model No. |
60A48V-V125 |
|
Charging Technology |
MPPT / Maximum power point tracking |
|
Charging Mode |
Constant current(MPPT) Constant voltage(Absorption voltage) |
|
System Type |
DC48V |
|
Automatic Select Voltage Range |
48V system (DC40V~DC60V) |
|
Soft Start Time |
≤1S |
|
Dynamic Response and Recovery Time |
100us |
|
Max Efficiency |
≥98.2% |
|
PV Utilization |
≥99% |
|
Self Consumption |
≤1.2W |
|
Input Specification |
|
|
Voc Range of PV ( Make sure the Voc of PV meets the requirement as right. Voc is 1.5 or 2 times than battery, then it’s the best efficiency. ) |
48V system (DC72V~DC160V) |
|
Maximum PV Module Open Circuit Voltage (Never over max PV Voc) |
For 48V battery: 160V |
|
The Maximum Nominal PV power |
48V system (2800W) |
|
Output Specification |
|
|
Selectable Battery Type |
Lithium battery (Defined voltage by user) For a 48V battery, you could set the voltage from 48V-68V. |
|
Absorption Charging Voltage |
Refer to the manual |
|
Floating Charging Voltage |
Refer to the manual |
|
Overcharging Protection Voltage |
48V system (60V) |
|
Rated Output Current |
60A |
|
Output Voltage Ripple-peak |
100mV |
|
Output Voltage Accuracy |
≤±1% |
|
Indicating |
|
|
LCD |
Refer to the manual |
|
Protection Function |
|
|
Temperature Protection |
75 °C/ 167℉ |
|
Fan-on Temperature |
>45 °C/ 113℉ |
|
Fan-off Temperature |
<40 °C / 104℉ |
|
PV Reverse Polarity Protection |
Yes (When Voc<100V only) |
|
PV Over-voltage Protection |
Yes(When Voc>180V, the controller will be burnt.) |
|
Battery Overcharge Current Protection |
Yes |
|
Battery Overcharge Voltage Protection |
Yes |
|
Battery Low Voltage Protection |
Yes |
|
Enclosure |
|
|
Acoustic Noise |
≤40dB |
|
Cooling Way |
Forced air cooling |
|
Components |
Industrial grade |
|
Size (cm) |
21.5*11.5*5 cm/8.46*4.52*1.96 in |
|
Net Weight(Kg) |
1.3kg/2.86lb |
|
Gross Weight(Kg) |
1.4kg/3.08lb |
|
Safety |
EN 62109-1 EN 60730-1 EN IEC 61000-6-3 EN IEC 61000-6-1 |
|
Protection Category |
IP21 |
|
Environmental Condition |
Indoor |
|
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ + 131℉ |
|
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ + 167℉ |
One MPPT solar controller
One Wifi box
A set brackets and screws
One manual
Please download the Android APP from Here.
Please download the IOS APP from Here.
Please download the manual from Here.
