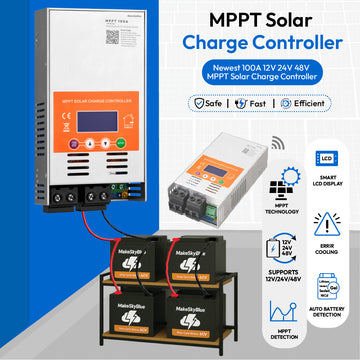

Newest 100A 12V 24V 48V Wifi MPPT Solar Charge Controller
-
Estimated Delivery:Sep 12 - Sep 16
-
Free Shipping & Returns: On all orders over $200
Newest 100A 12V 24V 48V Wifi MPPT Solar Charge Controller
100A 12V/24V/48V MPPT Solar Charge Controller
⚡ 100A MPPT Solar Charge Controller
● 🌞 MPPT Technology
● 🖥️ Built-in DSP Controller with high performance
● 🔋 Automatic Battery Voltage Detection for 12V / 24V / 48V
● 🔄 3-Stage Charging optimizes battery performance

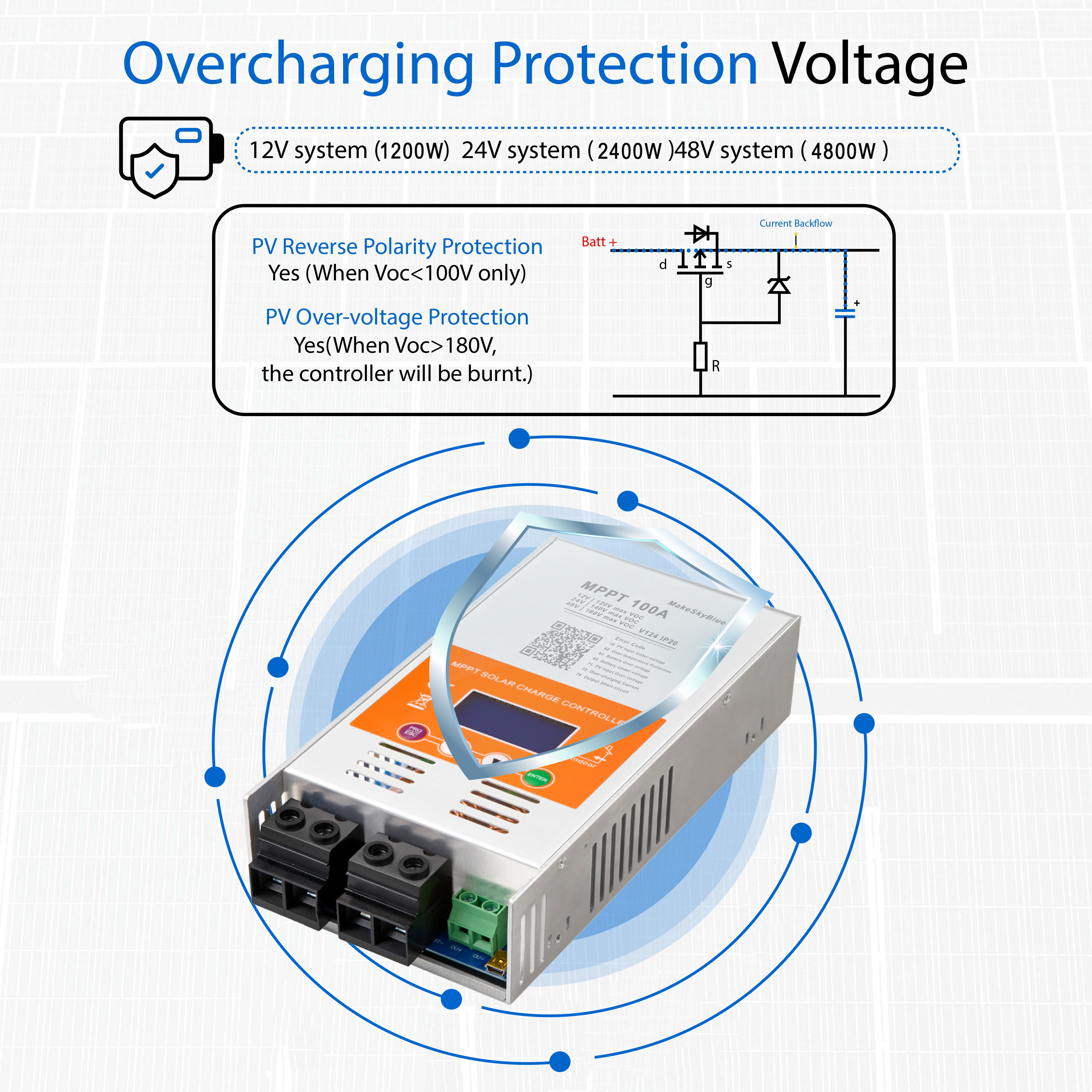

● ✅ Overcharge Protection
● 🔄 PV Polarity Reverse Protection
● 🚫 Output Limited Current Protection
● 🌡️ Over-Temperature Protection
● 🔋 Compatible with Multiple Battery Types – sealed lead acid, vented gel battery, etc.
● 📶 V124 or V124 with WiFi (Remote Control) – Model 100A-V124
|
Model |
100A-V124 |
|
|
RATED OUTPUT CURRENT |
100A |
|
|
Charging mode |
3-stage: constant current (MPPT), constant voltage, floating |
|
|
Battery voltage automatic recognition |
12V system (DC9V-DC15V) 24V system (DC18V-DC29V) 48V system (DC40V~DC60V) |
|
|
Overcharging protection voltage |
+1.5V |
|
|
Limited current protection |
52A*2 |
|
|
Max efficiency |
≥98.1% |
|
|
PV utilization |
≥99% |
|
|
INPUT |
|
|
|
Maximum PV Array Power |
For 12V Battery |
1200W |
|
For 24V Battery |
2400W |
|
|
For 48V Battery |
4400W |
|
|
PV Array Open Circuit Voltage (Voc) @Operating Voltage |
For 12V Battery |
20~80VDC |
|
For 24V Battery |
37~100VDC |
|
|
For 48V Battery |
72V~160VDC |
|
|
PV Over-voltage Protection (Open Circuit Voltage) |
For 12V Battery |
90VDC |
|
For 24V Battery |
100VDC |
|
|
For 48V Battery |
160VDC |
|
|
OUTPUT |
|
|
|
Selectable battery type |
For 12V/24V/ 48V Battery |
Vented/ Sealed / Gel / NiCd |
|
Absorption Charging Voltage |
Refer to Batteries charging reference |
|
|
Floating Charging Voltage |
Refer to Batteries charging reference |
|
|
Overcharging protection voltage |
+1.5V |
|
|
Limited current protection |
102A |
|
|
Temperature Coefficient |
±0.02%/℃ |
|
|
Automatic temperature compensation |
14.2V-（max temperature-25℃）*0.3 |
|
|
Output voltage ripple-peak |
100mV |
|
|
Output voltage accuracy |
≤±1% |
|
|
DISPLAY |
|
|
|
LCD display |
|
PV voltage / Output power Battery voltage / Charging current Working mode / Temperature Protection mode |
|
PROTECTION FUNCTION |
|
|
|
|
Temperature protection |
|
75℃ |
|
|
Fan-on temperature |
|
>45℃ |
|
|
Fan-off temperature |
|
<40℃ |
|
|
Overcharging protection voltage |
|
+1.5V |
|
|
Limited current protection |
|
102A |
|
|
PHYSICAL PROPERTIES |
|
|
|
|
Acoustic noise |
≤40dB |
|
|
|
Cooling way |
Fan |
|
|
|
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides or fluorides |
|
|
|
Components |
Imported materials, According to EU standards, Industrial grade. |
|
|
|
Humidity (Non-condensing) |
5% to 95% Relative Humidity |
|
|
|
Operating Temperature |
-20℃ ~ +55℃ |
|
|
|
Storage Temperature |
-40℃ ~ +75℃ |
|
|
|
Dimension, D x W x H (mm) |
215x125x50 |
||
|
Net Weight (kg) |
1.2 |
|
|
|
Gross weight(Kg) |
1.3 |
|
|
|
Security Level |
According to CE, PSE, FCC, EMC, EN60950 |
|
|
|
Electromagnetic Compatibility |
According to EN61000, EN55022, EN55024 |
|
|
|
Enclosure |
IP20 |
|
|
Batteries charging reference
|
Battery Type |
Absorption Voltage ( Constant voltage ) |
|
Floating Voltage |
|
|||
|
|
12V |
24V |
36V |
48V |
12V |
24V |
|
|
Vented |
14.2V |
28.6V |
42.6 |
57.2V |
13.2V |
26.4V |
|
|
Sealed |
14.5V |
28.8V |
43.2 |
57.6V |
13.8V |
27.6V |
|
|
Gel |
14.5V |
28.8V |
43.2 |
57.6V |
13.8V |
27.6V |
|
|
NiCd |
14.2V |
28.6V |
42.6 |
57.2V |
14.0V |
28.0V |
|
|
Lithium |
Defined by users |
|
|
|
|||
