5KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 220V AC, Off&On Grid Tie Inverter, No battery inverter, High PV inverter

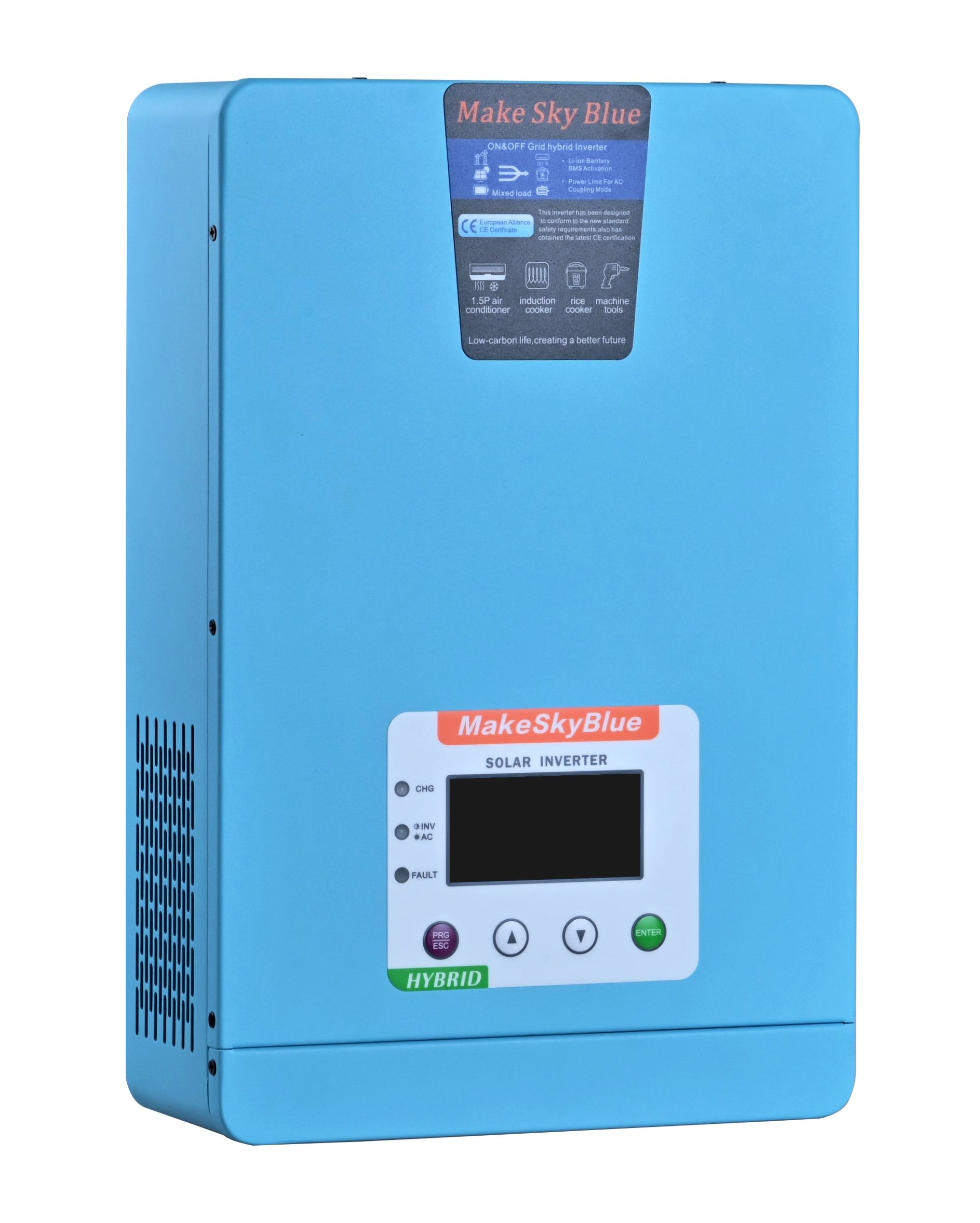

5KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 220V AC
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD offers user-configurable and easy-accessible button operations such as battery charging current.
- Pure sine wave inverter
- 18A MPPT solar charger for Max 5000W PV power
- 120V-400V(Voc) DC wide range input PV voltage
- AC/Solar charger priority, battery charging/cut-off voltage, acceptable input voltage based on different applications.
- work without a battery, the inverter can generate power from solar panels directly to load appliances
|
Model |
AIO5K48 |
|
PV INPUT |
|
|
MPPT Range @ Operating Voltage |
110-450VDC |
|
PV Overvoltage Protection Open Circuit Voltage |
450VDC |
|
Maximum PV Array Power |
5000W |
|
Maximum Solar Charge Current |
100A |
|
Storage Battery |
|
|
Pattern |
Pb/Li |
|
Rated Input Voltage |
48VDC
|
|
Direct Cell Voltage Range |
46.4-58.8V(Li)， |
|
Maximum Charging Current |
130A |
|
Floating Impulse Voltage |
53.5V(Pb),Li batteries |
|
Average charging voltage |
56.5V(Pb),Li batteries |
|
Basic Parameters |
|
|
Dimensions (L/H/W) |
390/320/109mm |
|
Net Weight |
7.8kg |
|
Noise |
≤48dB |
|
Use Temperature Range |
-20℃~+55℃ |
|
Storage Temperature |
-15℃∽+65℃ |
|
Use Humidity Range |
0~90% No condensation |
|
Using Altitude |
≤6000m |
|
AC Side Input |
|
|
Rated Voltage |
230Vac |
|
Voltage Range |
170-270Vac（UPS）, |
|
Maximum Input Voltage |
280VAC |
|
Rated Input Frequency |
50Hz/60Hz (self-adaption) |
|
Frequency Range |
40-65Hz |
|
Total harmonic distortion (THD) |
≤3%（100% Linear Load） |
|
Conversion Range |
10ms(UPS) 20ms(APL) |
|
Maximum AC Charging Current |
60A |
|
Inverter Output Parameters |
|
|
Rated Output Capacity
|
5KW |
|
Rated Output Voltage
|
230VAC/208VAC/240VAC |
|
Voltage Accuracy |
±5% |
|
Rated Output Frequency |
50Hz/60Hz |
|
Frequency Accuracy |
±2% |
|
Output Waveform Distortion Rate |
≤3%（100%Linear Load ） |
|
Power Factor |
1.0 |
|
Maximum Efficiency |
97.5% (PV360V@1/2load) |
|
Mixed Network Output oOverload |
50A |
|
Off Grid Carrying Capacity |
110%<load<150% (±10%): |
