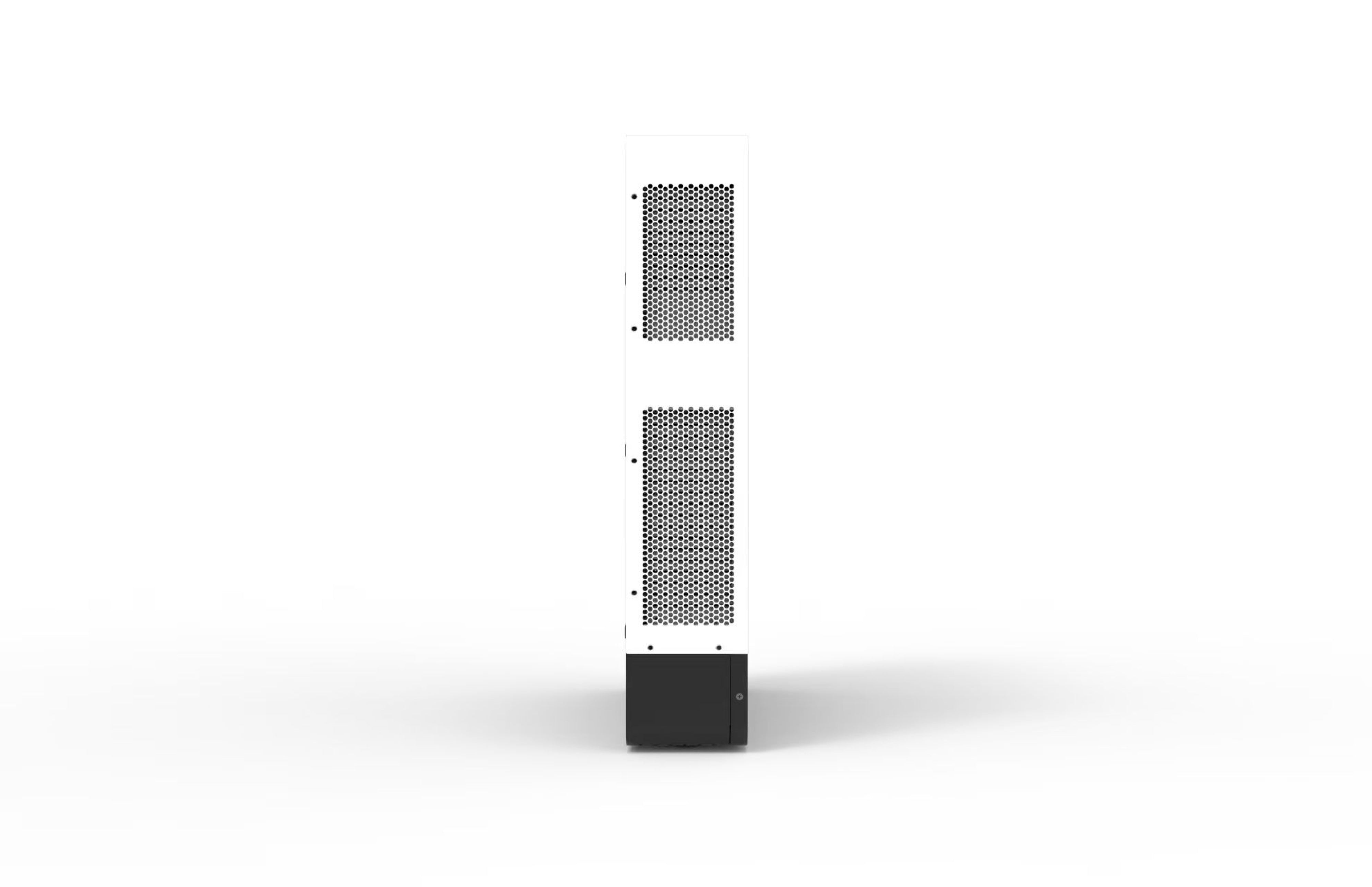

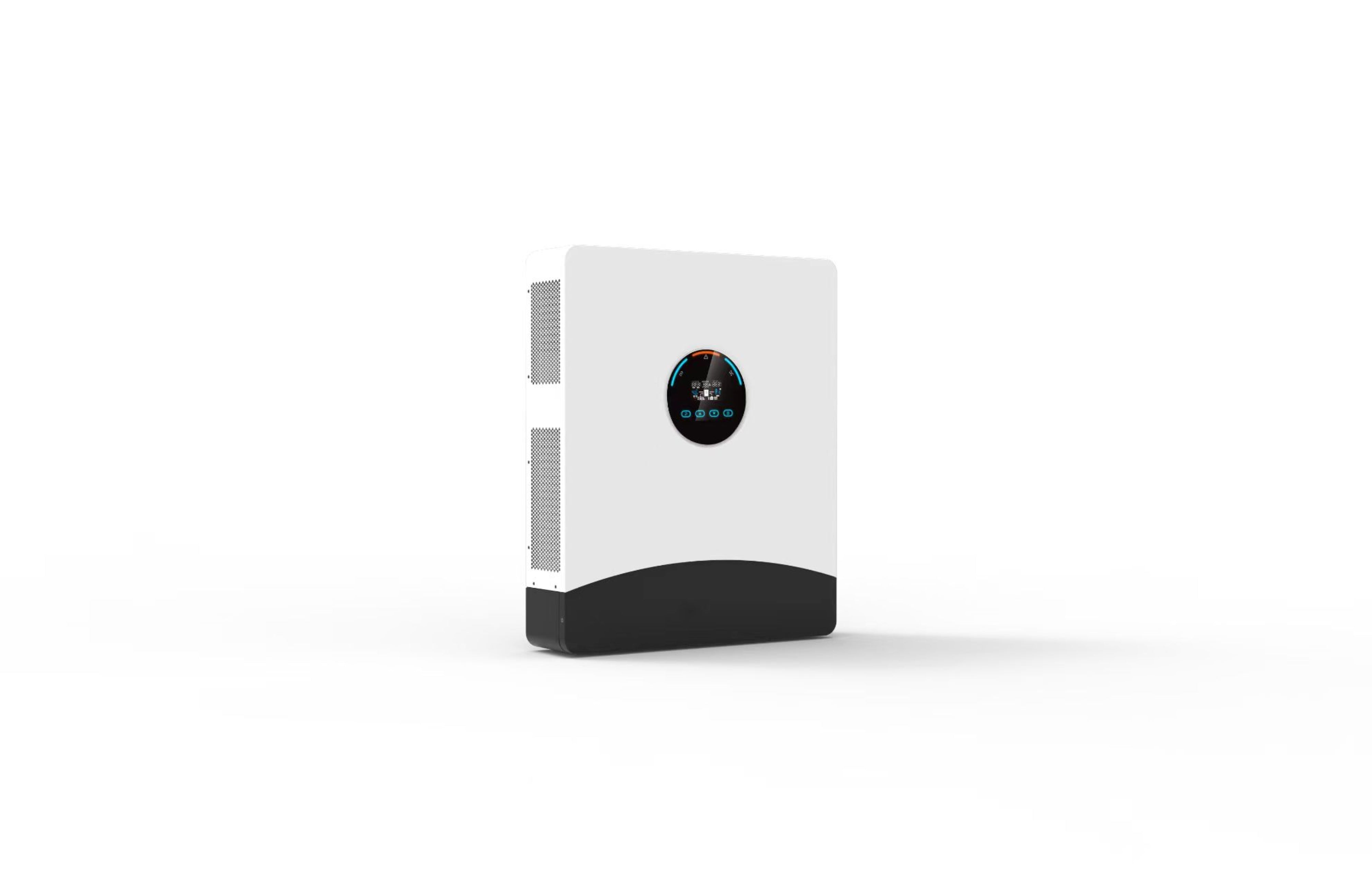

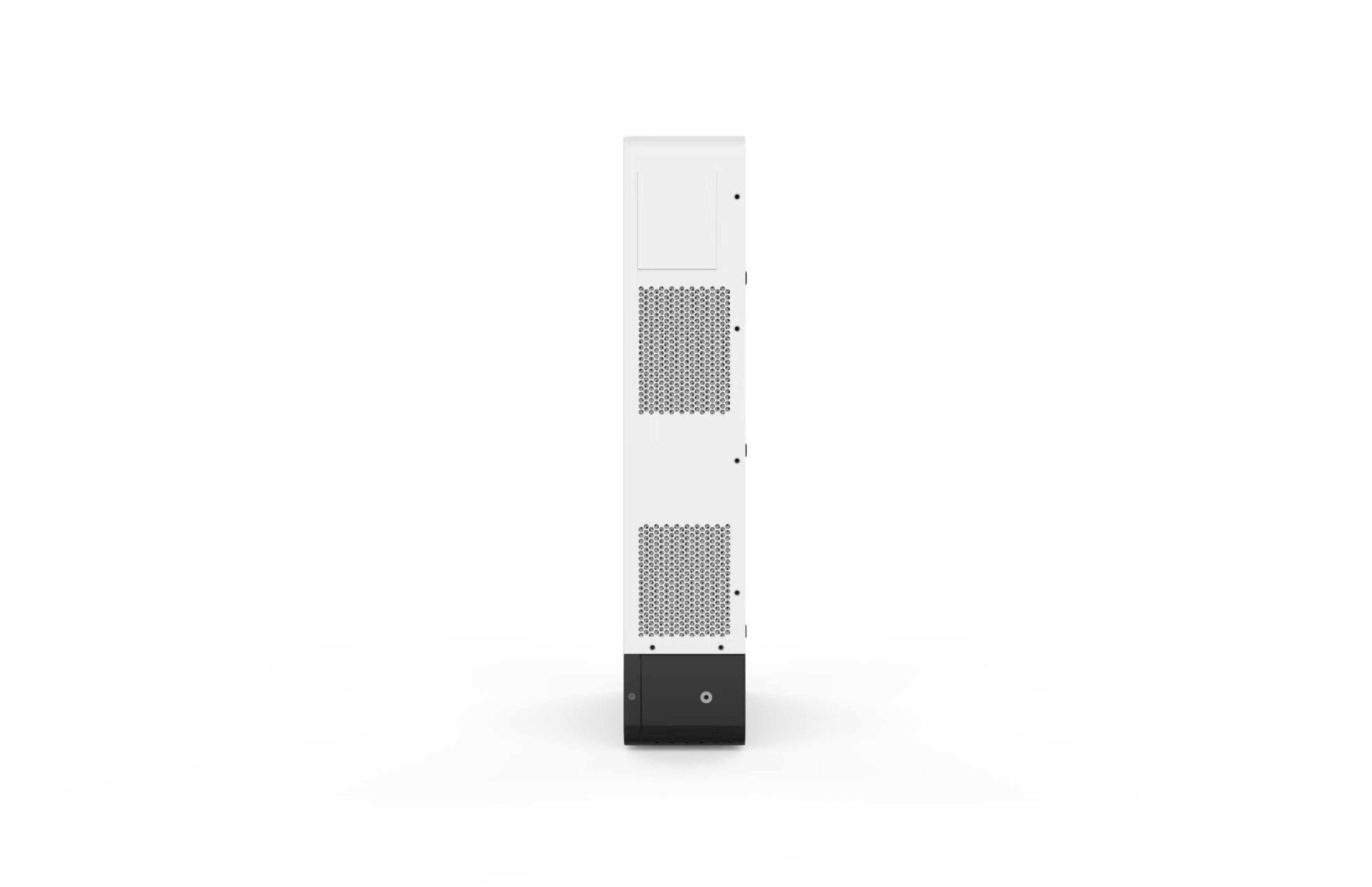

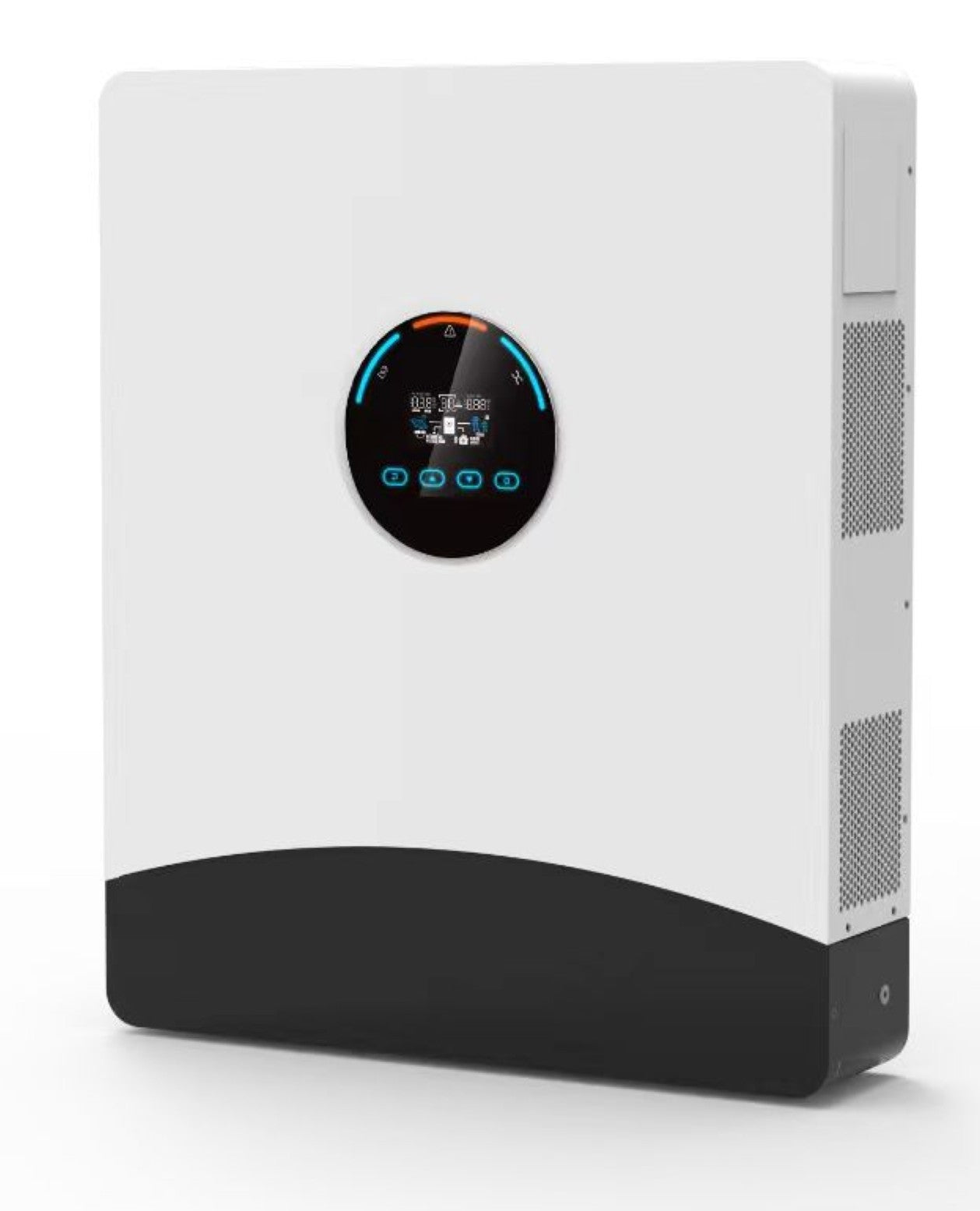

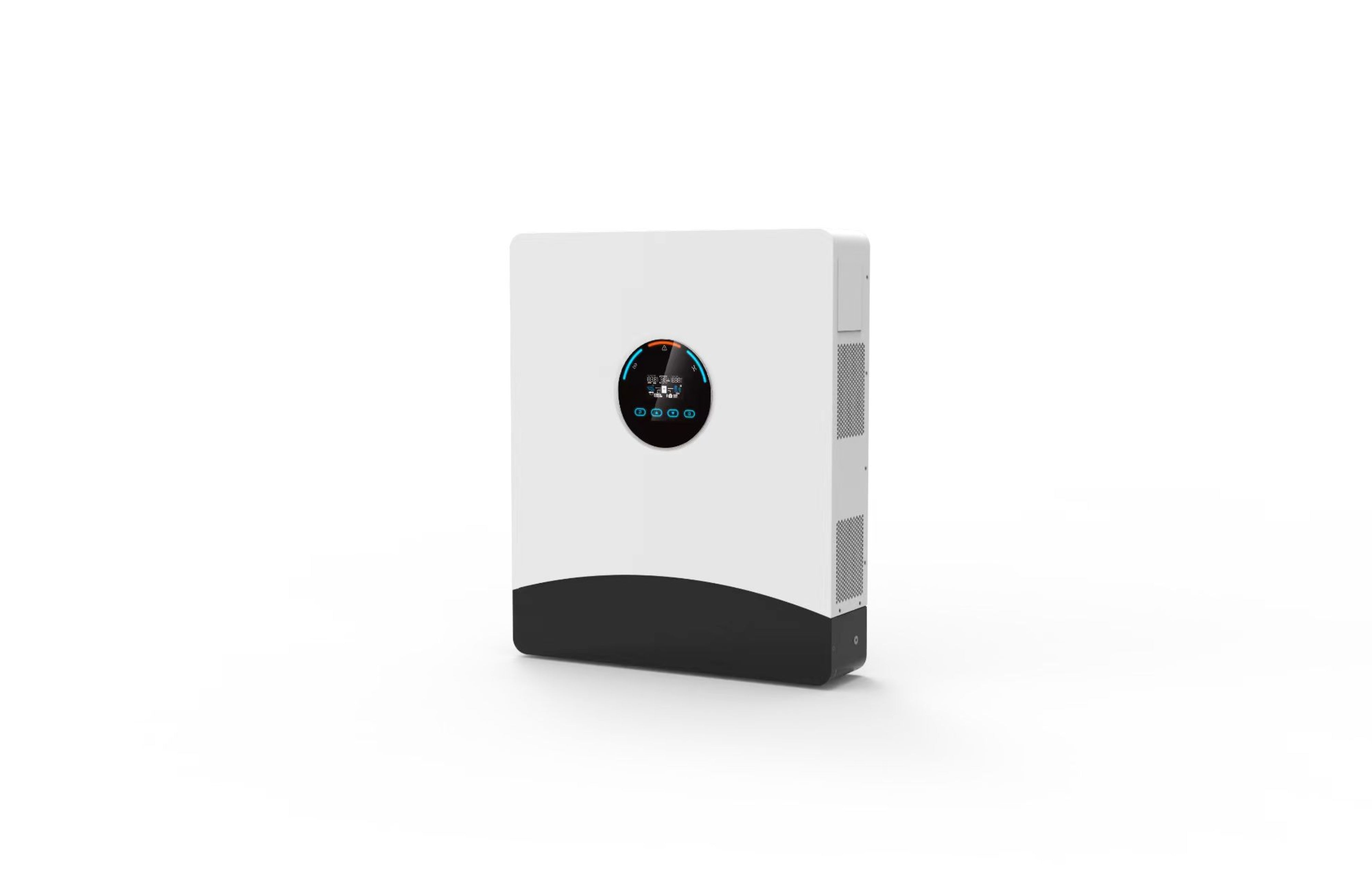

3.5KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 110/120V AC, Off-Grid Inverter, High PV Input Inverter
3.5KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 110V/120V AC
This product is a 3.5KW, 48V DC to110V/ 120V AC integrated wall-mounted off-grid energy storage inverter. It combines photovoltaic charging, battery management, and AC inverter output functions into one unit. Suitable for residential and commercial energy storage systems, it supports both lead-acid and lithium iron phosphate (LFP) batteries, and features comprehensive protection functions and multiple communication methods.
|
DC input |
|
|
Max allowable access string Power (W) |
3500 |
|
Max. input voltage |
500 |
|
MPPT operating voltage range |
85-450 |
|
Rated voltage (V) |
380 |
|
Starting voltage (V) |
75 |
|
Max DC current (A) |
18 |
|
Number of MPPT |
1 |
|
Number of input strings per MPPT |
1 |
|
DC terminal type |
TBD |
|
DC Switch(PV) |
--- |
|
Battery |
|
|
Battery type |
Lead-acid or LFP |
|
Rated voltage (V) |
48 |
|
Voltage range (V) |
40-60 |
|
Max charge and discharge power (W) |
3500 |
|
Max charge current(A) |
60 (Can be set) (MPPT:60A, GRID: 60A) |
|
Max discharge current (A) |
75 |
|
Battery Capacity (Ah) |
≥100(tailor) |
|
Charging mode |
Three-stage form (Lead-acid) |
|
According to BMS requirements (lithium) |
|
|
Max charging voltage(V) |
60(Can be set) |
|
Battery temperature compensation |
Integrated (lithium battery) |
|
Battery voltage |
Integrated |
|
AC input |
|
|
Max input power(W) |
6000 |
|
Max input current(A) |
50 |
|
Rated input voltage(V) |
110/120/127 (Optional) |
|
Rated grid frequency(Hz) |
50/60 (Optional) |
|
THDI |
<3% (linear load) |
|
Power factor |
1 |
|
AC output |
|
|
Max AC power (W) |
3500 |
|
Max AC power (W) |
50/60 (Optional) |
|
Frequency accuracy |
±2% |
|
Voltage level (V) |
110/120/127 (Optional) |
|
Max output current (A) |
29.2 |
|
Voltage regulation accuracy |
±1% |
|
THDV |
THDV<3% (linear load) |
|
Overload capacity |
105%<load rate≤150%, 10.5s later alarm shutdown |
|
load rate≥150%, 5.5slater alarm shutdown |
|
|
Efficiency |
|
|
Max efficiency of mains (100%R+50%CHG) |
93% |
|
Max efficiency of battery inverter |
88%~90% |
|
Protection |
|
|
Over and under voltage protection |
√ |
|
Output overcurrent protection |
√ |
|
Output short circuit |
√ |
|
Overtemperature |
√ |
|
General parameters |
|
|
Dimensions (L * W * H) (mm) |
120*346.6*444.7 |
|
Weight (kg) |
13.5 |
|
Installation mode |
wall-mounted |
|
Operating Temperature range |
-10℃~55℃ (>40℃ Load reduction or derating) |
|
Relative humidity |
5%~95% |
|
Max working altitude (m) |
>2000m derating |
|
Class of protection |
IP54 |
|
Standby power consumption (W) |
<10 |
|
Cooling mode |
Fan cooling |
|
Noise Index (dB) |
<60 |
|
Display mode |
LCD screen |
|
Communication mode |
RS232, dry contact, Wi-Fi, RS485 |
|
Warranty Period (years) |
3 |
|
Number of parallel |
12 |
