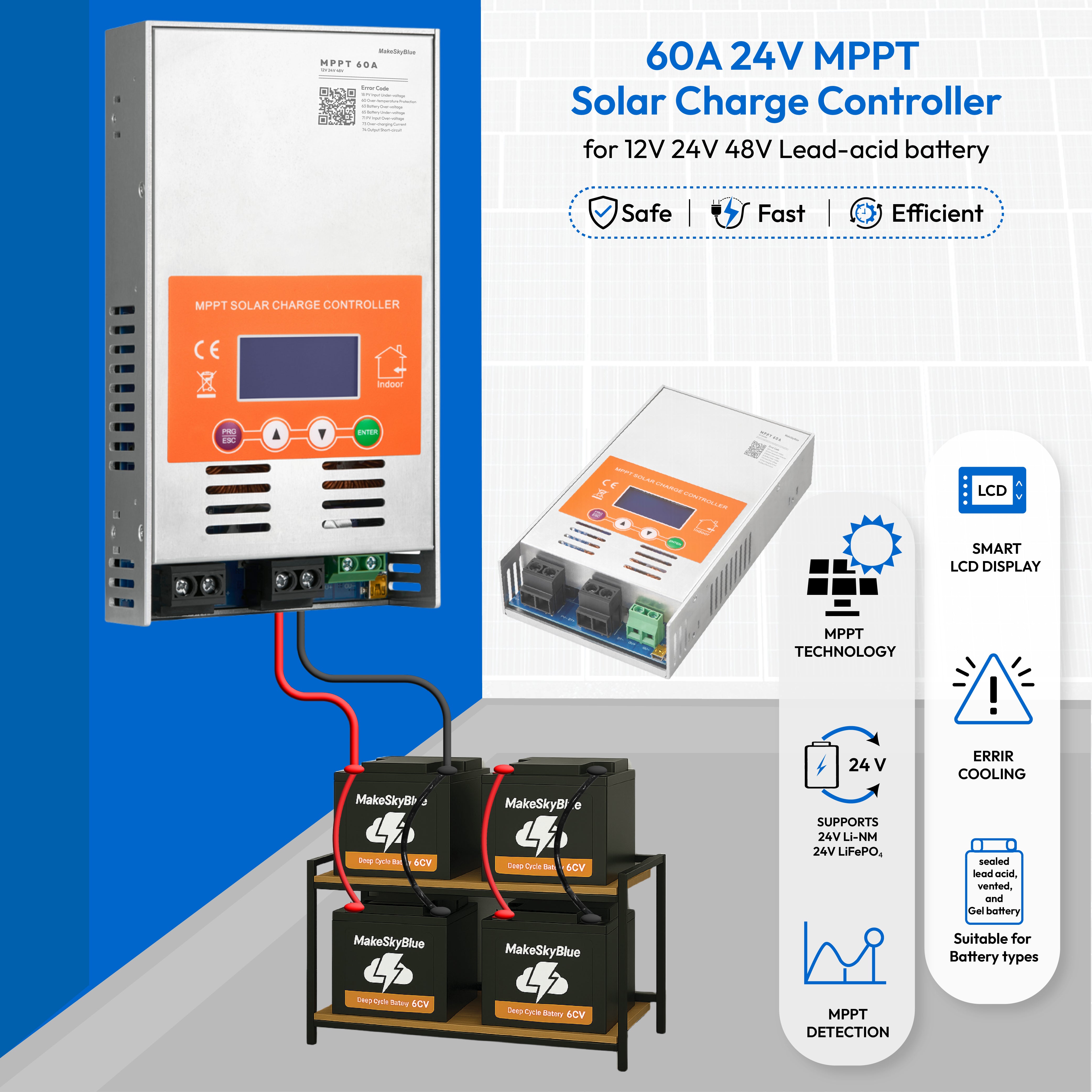

60A MPPT太阳能充电控制器
100%MPPT控制器
| 型号 | S3-60A |
| 充电模式 | 最大功率点自动跟踪 |

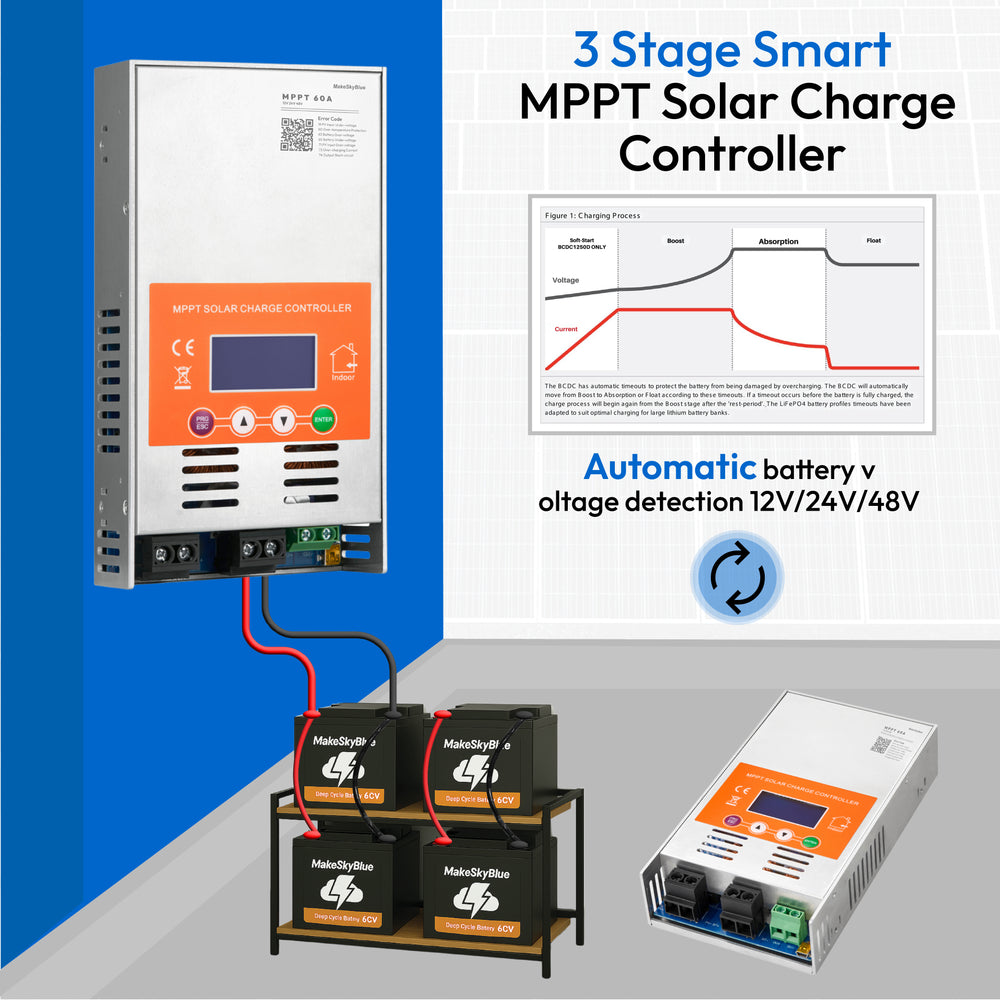

| 三段式充电 | 三级：恒流（MPPT）、恒压（吸收电压）、浮充 |
| 电池系统类型 | DC12V/24V/36V/48V自动识别 |
| 系统电压自动识别 | 12V系统（DC20V~DC80V） 24V系统（DC37V~DC105V） 36V系统（DC50V~DC160V） 48V系统（DC72V~DC160V） |
| 软启动时间 | ≤1秒 |
| 动态响应和恢复时间 | 100毫秒 |
| 最高效率 | ≥98.2％（光伏板电压是电池的1.5或2倍时效率最高） |
| 光伏利用率 | ≥99% |
| 输入规格 | |
光伏电压（确保光伏电压符合要求） （当光伏电压是电池的1.5倍或2倍时，将是最高的效率） | 12V系统（DC20V~DC80V） 24V系统（DC37V~DC105V） 36V系统（DC50V~DC160V） 48V系统（DC72V~DC160V） |
| 最大光伏输入功率 （光伏的总额定功率不能超过该瓦，否则会损坏控制器） | 12V系统（720瓦） 24伏系统（1440瓦） 36V系统（2100瓦） 48V系统（2800瓦） |
| 输出规格 | |

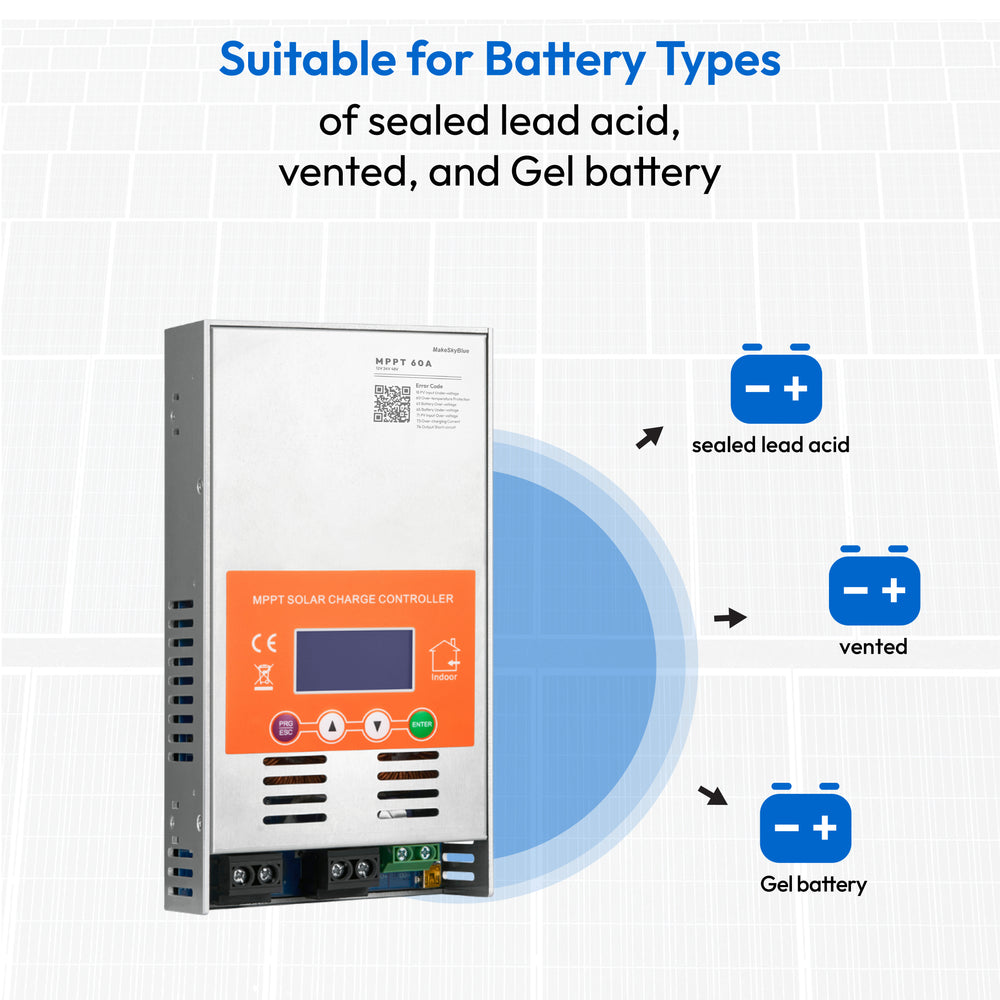

| 可选电池类型（默认为密封电池） | 通气/密封/凝胶/镍镉/锂电池（用户定义的其他电池电压） 对于12V电池，您可以将电压设置为12V-17V 对于24V电池，您可以将电压设置为24V-34V 对于36V电池，您可以将电压设置为36V-51V 对于48V电池，您可以将电压设置为48V-68V |
| 吸收充电电压 | 请参阅电池充电参考 |
| 浮充电压 | 参见蓄电池充电参考 |

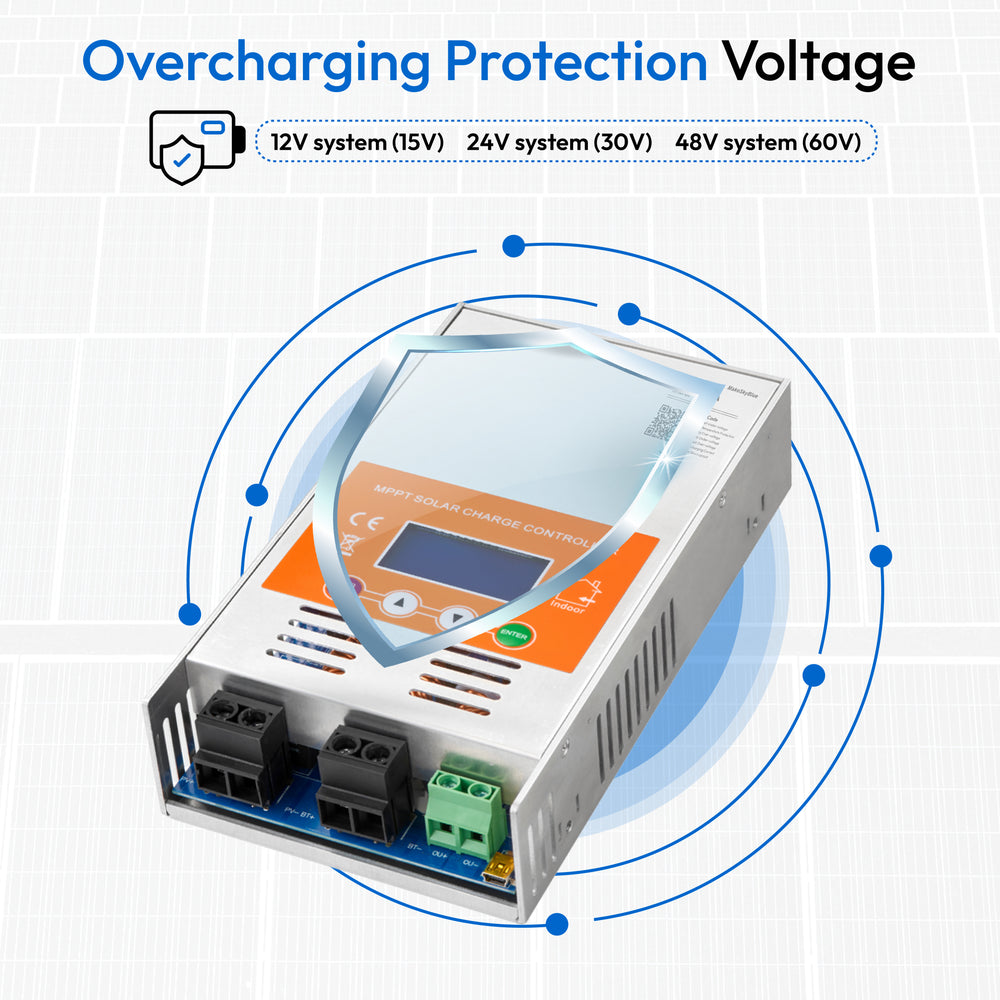

| 过充电保护电压 | 12伏系统（15V） 24伏系统（30V） 36伏系统（45V） 48伏系统（60V） |
| 额定输出电流 | 60A |
| 温度系数 | ±0.02%/ °C |
| 自动温度补偿 | 14.2v-（最低温度-25℃）*0.3 |
| 输出电压纹波峰值 | 100 mV |
| 输出电压精度 | ≤±1% |
| 显示 | |
| 液晶显示器 | 参见液晶显示屏参数 |
| 保护功能 | |
| 输出过电压保护 | 见输出规格 |
| 输入防入侵保护 | 是 |

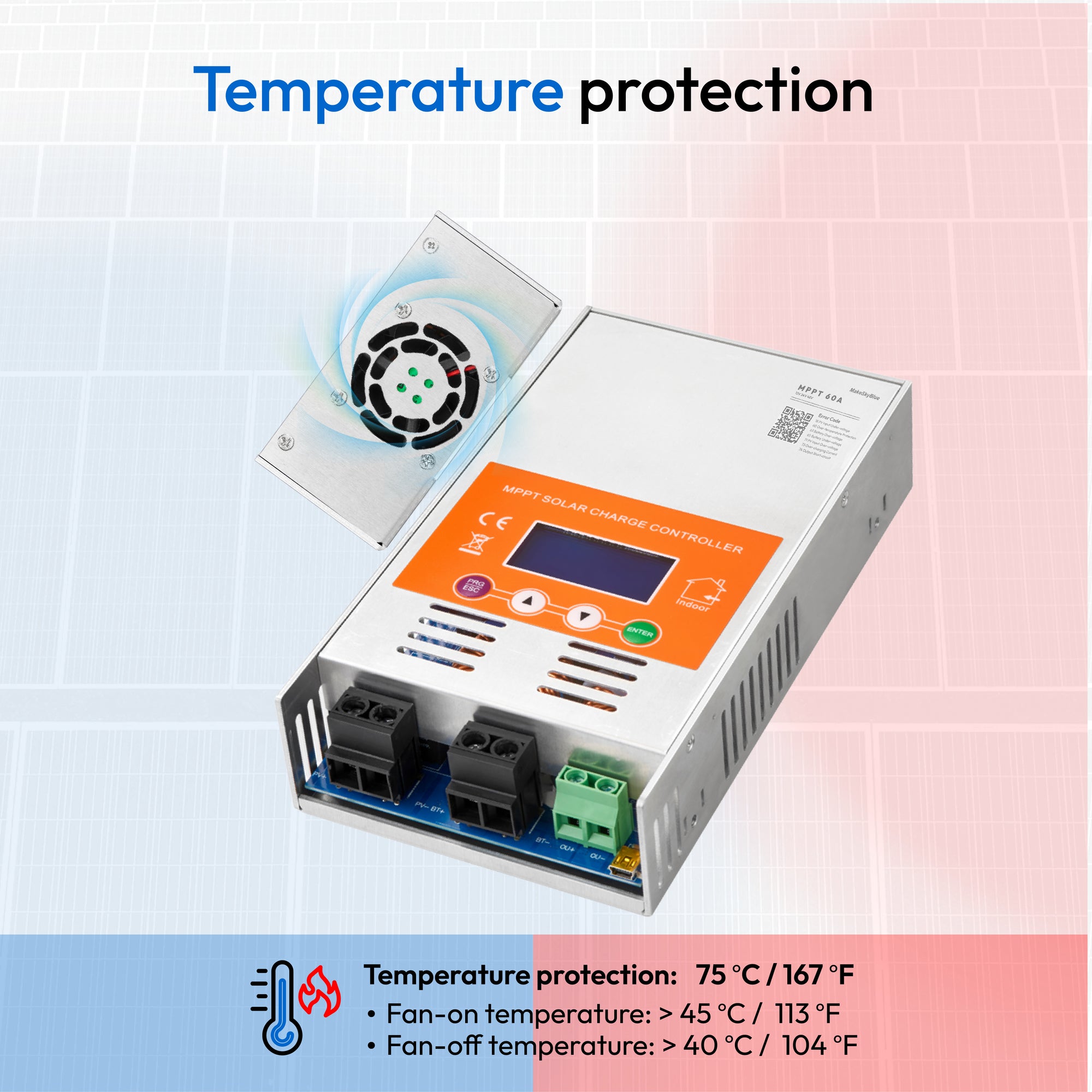

| 温度保护 | 75 °C |
| 升温保护 | 当温度超过70°C时，输出功率会降低。 当温度低于55°C时，输出功率正常。 |
| 风扇开启温度 | >45 °C |
| 风扇关闭温度 | <40 °C |
| 其他参数 | |
| 声学噪声 | ≤40分贝 |
| 冷却方式 | 强制空气冷却 |
| 组件 | 进口材料，符合欧盟标准，工业级范围 |
| 环保要求 | 符合2002/95/EC；无镉、氢化物和氟化物 |
| 属性 | |
| 尺寸（mm）毫米 | 215x115x50 |
| 净重（kg）千克 | 1.1 |
| 毛重 (Kg) 千克 | 1.2 |
| 安全级别 | 符合CE、PSE、FCC、EMC、EN60950 |
| 电磁兼容性 | 符合EN61000、EN55022、EN55024 |
| 防水等级 | IP21 |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

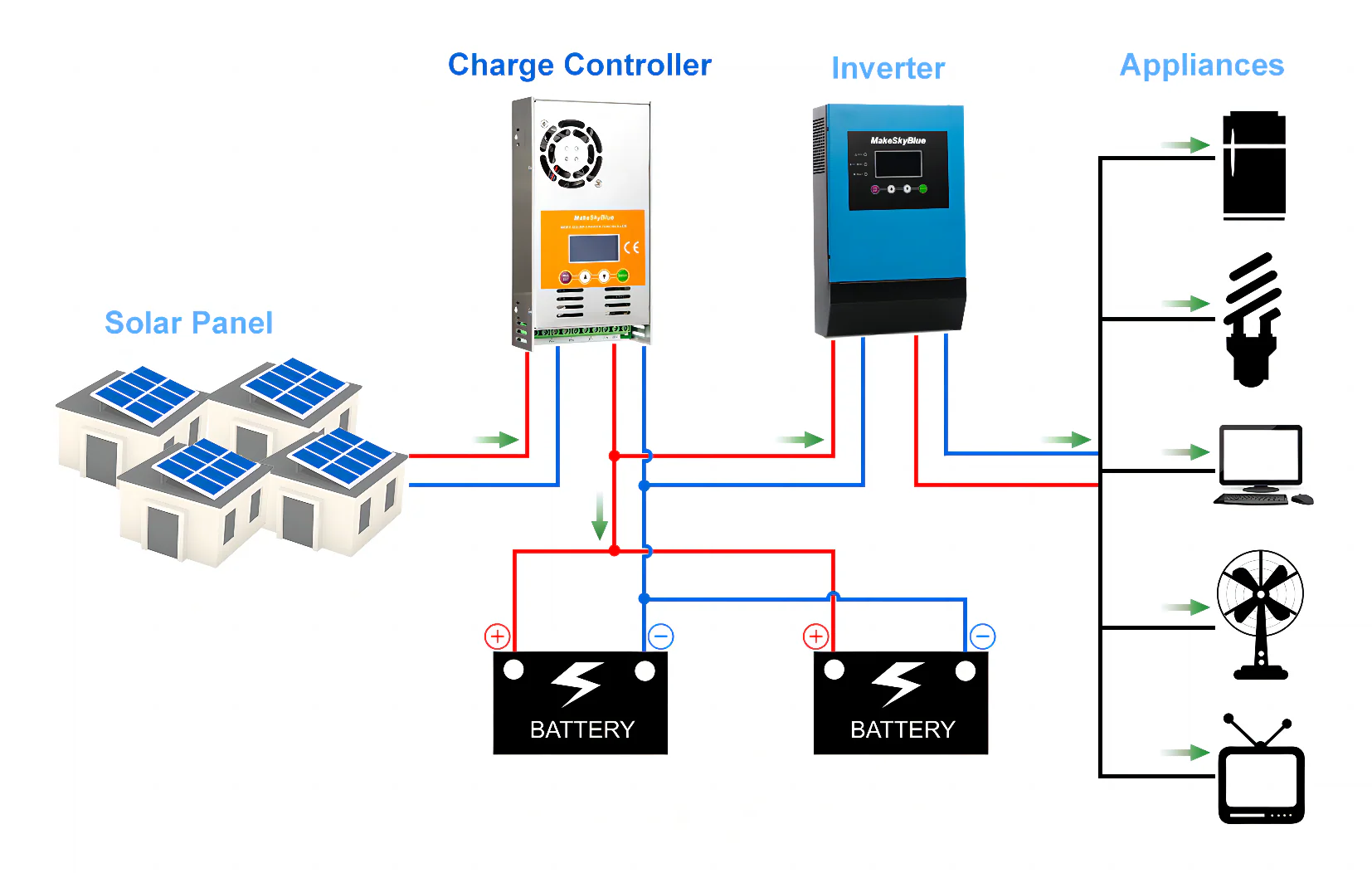

Complete Solar Power System Integration
