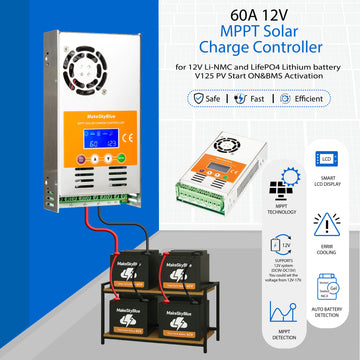

60A 12V MPPT Solar Charge Controller for 12V Li-NMC and LifePO4 Lithium battery V125 PV Start ON&BMS Activation
-
Estimated Delivery:Sep 05 - Sep 09
-
Free Shipping & Returns: On all orders over $200
60A 12V MPPT Solar Charge Controller for 12V Li-NMC and LifePO4 Lithium battery V125 PV Start ON&BMS Activation
60A 12V MPPT Solar Charge Controller
- Intelligent Maximum PowerPoint Tracking technology
- Built-in High-Performance DSP controller
- PV Start ON&BMS Activation ( Very important for Li-NMC and LifePO4 battery )
- Three-stage charging optimizes lead-acid battery performance
- Charging voltage accuracy is +/-0.1V
- D06 to calibrate voltage
- Multi-function LCDs
- Output limited current protection
- Overcharge protection
- Over-temperature protection
- Easy to be mounted on the wall
- No need for an extra device to be in parallel
- No limited quantity to be in parallel
- Easy to set for lithium battery
- Suitable for battery types of Lithium and sealed lead acid, vented Gel battery
|
Model No. |
60A12V-V125 |
|
Charging mode |
MPPT Maximum power point tracking automatically |
|
Charging |
Lithium battery Or 3-stage for Lead-acid battery： constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
|
System type |
DC12V |
|
Charging voltage range |
12V system (DC9V-DC15V) You could set the voltage from 12V-17V. |
|
Soft Start Time |
≤1S |
|
Dynamic Response and Recovery Time |
100us |
|
Max Efficiency |
≥98.2% (Voc is 1.5 or 2 times than battery, then it’s the best efficiency) |
|
PV Utilization |
≥99% |
|
Self Consumption |
≤1.2W |
|
Input Specification |
|
|
Voc Range of PV ( Make sure the Voc of PV meets the requirement on the right. If Voc is 1.5 or 2 times the battery voltage, it’s the best efficiency. ) |
12V system (DC20V~DC80V) |
|
Maximum PV Module Open Circuit Voltage (Never over max PV Voc) |
For 12V Battery: 80V |
|
The Maximum Nominal PV Power (The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (720W) |
|
Output Specification |
|
|
Selectable Battery Type (Default is Lithium Battery) |
Lithium / Vented/ Sealed / Gel / NiCd battery(defined voltage for other battery by user) |
|
Absorption Charging Voltage |
Refer to the manual |
|
Floating Charging Voltage |
Refer to the manual |
|
Overcharging Protection Voltage |
12V system (+1.5V)
|
|
Rated Output Current |
60A |
|
Output Voltage Ripple-peak |
100mV |
|
Output Voltage Accuracy |
≤±1% |
|
Indicating |
|
|
LCD |
Refer to the manual |
|
Protection Function |
|
|
Temperature Protection |
75 °C / 167℉ |
|
Fan-on Temperature |
>45 °C / 113℉ |
|
Fan-off Temperature |
<40 °C / 104℉ |
|
PV Reverse Polarity Protection |
Yes (When Voc<100V only) |
|
PV Over-voltage Protection |
Yes (When Voc>180V, the controller will be burnt.) |
|
Battery Overcharge Current Protection |
Yes |
|
Battery Overcharge Voltage Protection |
Yes |
|
Battery Low Voltage Protection |
Yes |
|
Enclosure |
|
|
Acoustic Noise |
≤40dB |
|
Cooling Way |
Forced air cooling |
|
Components |
Industrial grade |
|
Size (cm) |
21.5*11.5*5 cm/8.46*4.52*1.96 in |
|
Net Weight(Kg) |
1.3kg/2.86lb |
|
Gross Weight(Kg) |
1.4kg/3.08lb |
|
Safety |
EN 62109-1 EN 60730-1 EN IEC 61000-6-3 EN IEC 61000-6-1 |
|
Protection Category |
IP21 |
|
Environmental Condition |
Indoor |
|
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ + 131℉ |
|
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ + 167℉ |
1 MPPT solar controller
1 set of parts for case mounted
1 English manual
Reminder:
Please choose the right warehouse for your purchase.
The CN warehouse can ship to the world.
The US warehouse ships to the USA only.
The DE warehouse ships to European Union only.
The AU warehouse ships to Australia only.
The UK warehouse ships to the United Kingdom only.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Complete Solar Power System Integration

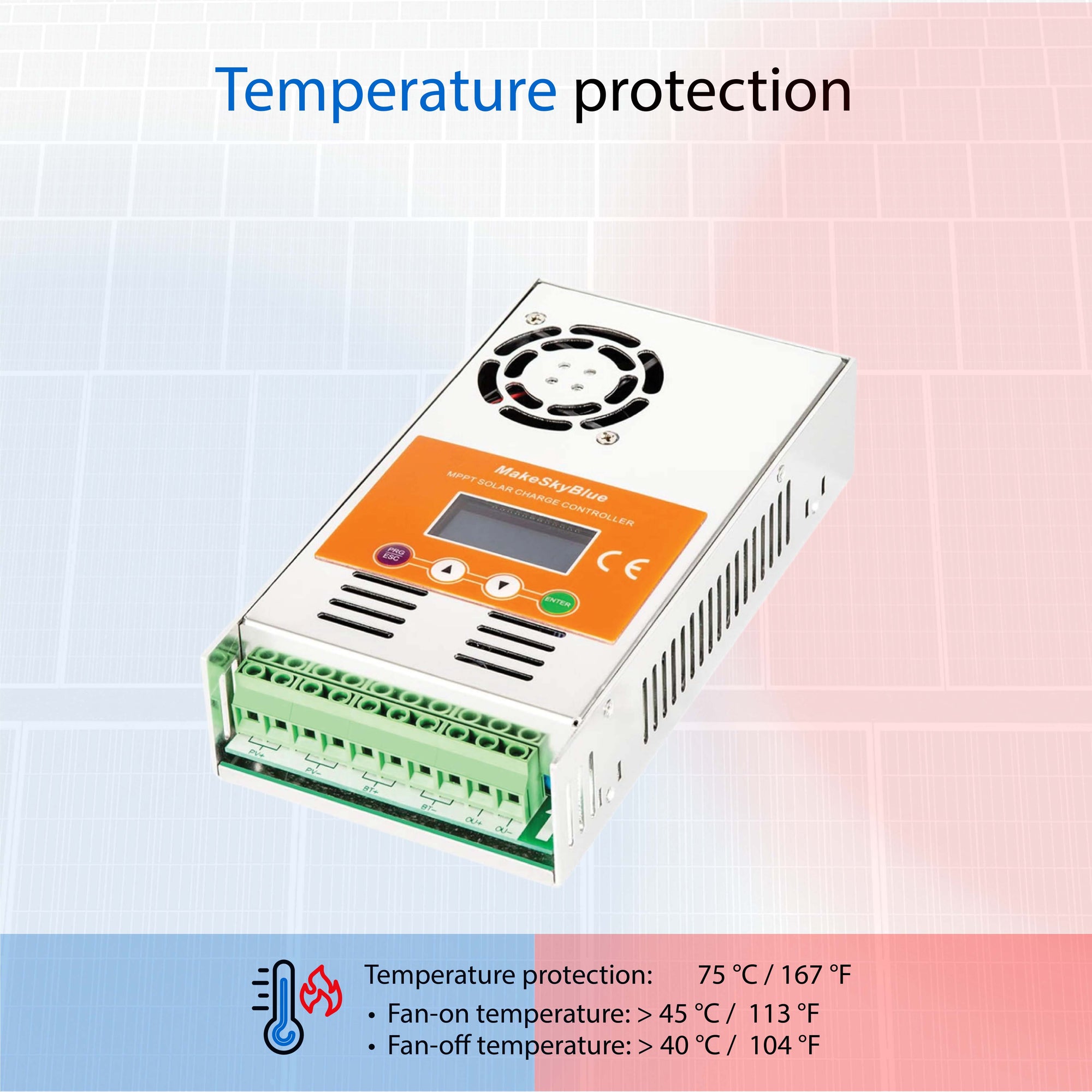

Temperature Protection with Automatic Cooling
