The installation of a solar power system does not only entail the use of panels and batteries. Thus, a charge controller will be necessary when using the solar panel systems to safeguard your investment and ensure maximum productivity. This is a very important part, which serves as the brain of your solar system, as it controls the power circulation between the panels and the batteries.
This device is not given much thought by many people when they design their solar installation. Nevertheless, selecting an improper controller may cause battery damage and consume power. In addition, in case your system is not regulated properly, you may experience underperformance or even failure.
What is a Charge Controller for Solar Panel Systems?
A solar panel installation charge controller is an electronic control voltage and current in solar panels to batteries. In essence, it eliminates overcharging on sunny days and reverse current movement at night.
As per the California Energy Commission, the stand-alone solar systems should have a charge regulator or controller. It also guarantees the provision of an appropriate share of power to the batteries at the appropriate levels of voltages.
The gadget keeps checking the battery status and varies charging. This results in longer lasting batteries and better outcomes during their existence.
Why Do You Need a Solar panel Charge Controller?
Solar panels are normally designed to generate 16-20 volts to power 12 volt batteries. Nonetheless, the majority of the batteries require 14 to 14.5 volts to be fully charged. Lack of a controller, this extra voltage ruins battery cells forever.
Furthermore, batteries discharge back through solar panels during nighttime without protection. Therefore, a charge controller for solar panel systems prevents this reverse current flow automatically.
The U.S. Department of Energy defines activation voltage as the point at which a charge controller takes action to protect batteries. This protection extends battery life significantly and maintains system efficiency. Additionally, the controller prevents deep discharge situations. Thus, your batteries maintain optimal health and provide reliable power when needed.
Understanding the Two Main Types of Solar Charge Controllers
PWM Charge Controllers Explained
Pulse Width Modulation controllers connect solar panels directly to batteries. Basically, they pull down panel voltage to match battery voltage during charging.
These controllers work well for smaller systems with limited budgets. Moreover, they extend battery lifespan through proper voltage regulation and charging stages.
However, PWM controllers cannot utilize excess panel voltage. Therefore, you lose potential energy that could otherwise charge batteries faster.
MPPT Charge Controllers Explained
Maximum Power Point Tracking controllers offer superior efficiency compared to PWM models. Specifically, they convert excess voltage into additional charging current automatically.
Research from Science.gov indicates that MPPT systems can achieve solar energy to battery charge conversion efficiency of 14.5%. Consequently, you extract maximum power from solar panels in all conditions.
These advanced controllers work with higher voltage panels too. Thus, you gain flexibility in system design and component selection.
PWM vs MPPT Comparison Table
|
Feature |
PWM Controller |
MPPT Controller |
|
Efficiency |
70-80% |
92-97% |
|
Cost |
Lower |
Higher |
|
Best For |
Small systems under 200W |
Systems above 200W |
|
Panel Voltage |
Must match battery |
Can be higher than battery |
|
Cold Weather Performance |
Standard |
Excellent |
|
Installation Complexity |
Simple |
Moderate |
How to Select the Right Charge Controller for Your Solar Panel System?
Calculate Your System Requirements
First, determine your total solar panel wattage and battery bank voltage. Then, calculate the maximum current your controller must handle safely.
Multiply panel short-circuit current by 1.25 for safety margin. Additionally, consider future system expansion when sizing your controller.
Match Controller Voltage to Your System
Select a controller with your voltage on a battery bank. Examples are 12 V, 24 V, 36 V and 48 V systems.
Along with this, make sure that the controller is capable of dealing with the maximum voltage of your panel. Otherwise, there is a risk that you will destroy the device and cancel warranties.
Consider Your Battery Type
The use of different chemistries of the battery necessitates different charging profiles. There are special requirements of lead-acid, lithium-ion, and LiFePO4 types of batteries.
Essential Features in a Quality Solar Panel Charge Controller
Temperature Compensation
Quality controllers modify the voltage to be charged depending on the temperature of the battery. As a result, the batteries are charged correctly during hot and cold weather.
According to the Department of Energy, temperature-sensitive charging eliminates the undercharging of cold weather and overcharging of hot weather. This capability doubles the battery life.

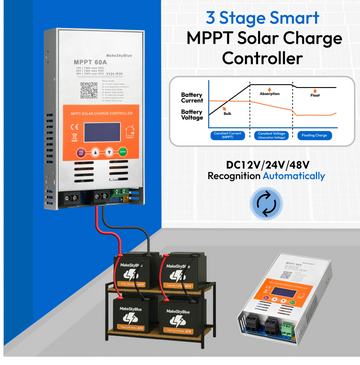

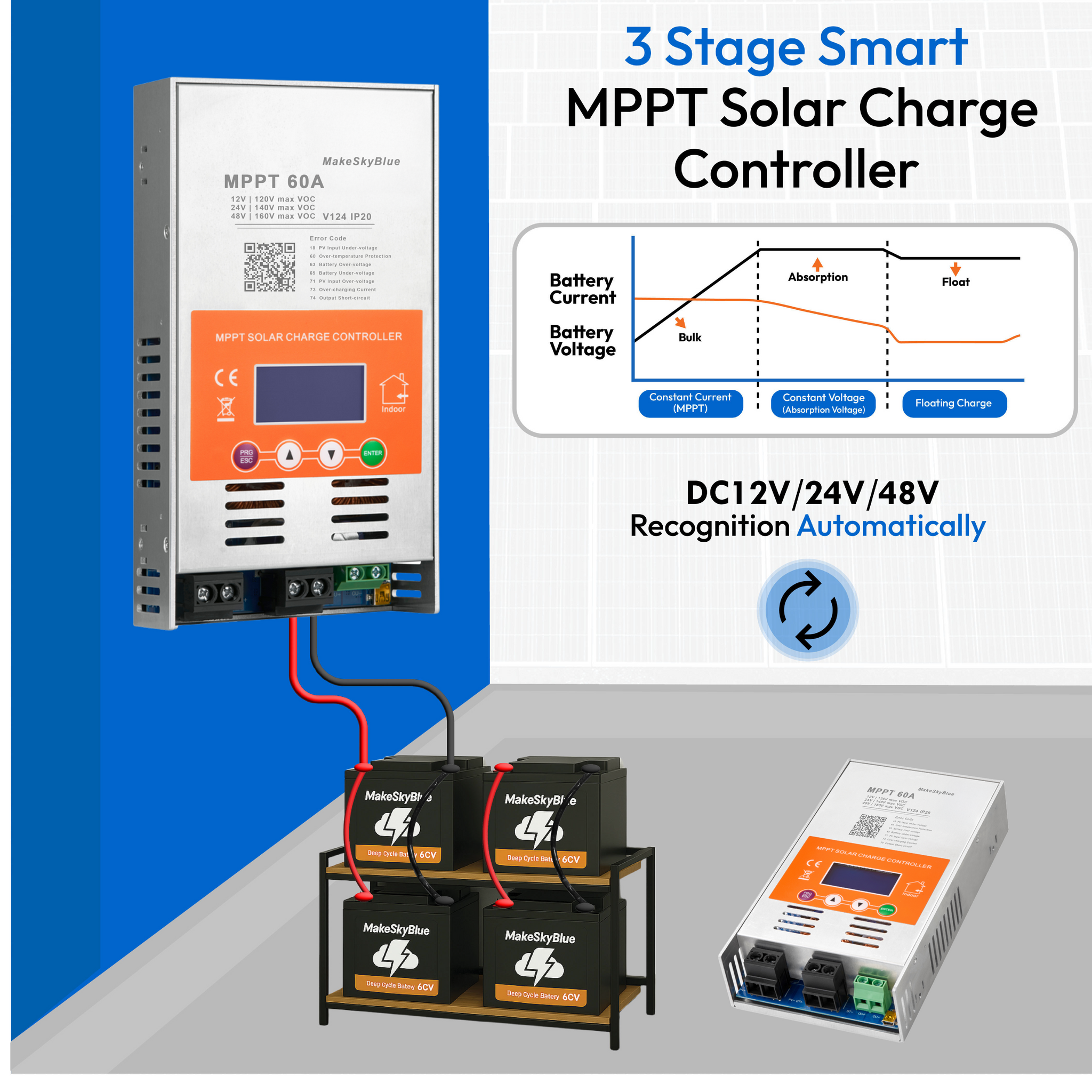

Multiple Charging Stages
State of the art controllers charge through three or four stages.. These stages include bulk, absorption, float, and sometimes equalization.
Each stage serves a specific purpose in battery maintenance. Thus, your batteries remain healthy and deliver consistent performance.
LCD Display and Monitoring
Modern controllers feature clear displays showing system status. Information includes battery voltage, charging current, and daily energy production.
Moreover, WiFi-enabled models allow remote monitoring through smartphone apps. Therefore, you can check system performance from anywhere.
Load Control Features
Many controllers include load output terminals for connecting devices directly. These outputs often include low voltage disconnect protection automatically.
Additionally, programmable timers control when loads operate. Consequently, you can automate lighting and other applications easily.
Key Specifications to Compare When Choosing Controllers
Current Rating
Select a controller with adequate amperage for your panel array. Higher ratings provide headroom for system expansion later.
Maximum PV Input Voltage
Ensure the controller handles your panel's open-circuit voltage safely. Cold temperatures increase panel voltage above rated specifications.
Efficiency Rating
Look for controllers with conversion efficiency above 95 percent. Higher efficiency means more solar energy reaches your batteries.
Protection Features
Quality controllers include overcurrent, short-circuit, and reverse polarity protection. These safeguards prevent damage from installation errors.
Common Mistakes to Avoid When Selecting Solar Charge Controllers
Undersizing the Controller
Never choose a controller smaller than your system requires. Therefore, always add 25 percent safety margin to calculations.
Undersized controllers overheat and fail prematurely. Consequently, you face expensive replacements and potential system damage.
Ignoring Battery Compatibility
Mismatched charging profiles damage batteries quickly. Hence, verify your controller supports your specific battery chemistry.
Skipping Future Expansion Planning
Most of the individuals only size controllers to meet current requirements. Nonetheless, the cost of planning to add the panel in future is cost-effective over time.
More Emphasis on Price than Quality
Low cost controllers do not have protection features. In addition, they break down earlier and consume more energy with inefficiency.
Installation and Maintenance Tips for Solar Panel Charge Controllers
Install controllers in places which are well vented and not directly exposed to the sun. Also, make sure that they are in close proximity with batteries to reduce voltage drop.
Install cables of the correct size. Moreover, tighten all the connections and make them corrosion-free.
Maintain a check controller to correspond with seasonal temperatures. In addition, wash down cooling vents on a regular basis.
Conclusion
Selecting an appropriate charge controller in the solar panel systems is the best way to safeguard your investment and ensure maximum efficiency in the energy. Thus, when choosing controllers, remember about system size and battery type and expansion in the future. MPPT controllers provide better performance to most of the installations even though they are more expensive. Besides, such amenities as temperature compensation and WiFi surveillance are also important value-added features.
The consideration of quality is more important than the original cost in the case of solar charge controllers. As a result, risky brands lead to costly failures and subsequent replacements in the future.
It is time to modernize your solar system to professional-grade charge controllers. Visit MakeSkyBlue to have high performance MPPT controllers that have cloud monitoring and full battery support.
FAQs
What size charge controller do I need for my solar panel?
Calculate total panel wattage divided by battery voltage, then multiply by 1.25. For example, 400W panels with 12V batteries need approximately 42A controller capacity.
Can I use solar panels without a charge controller?
Small panels under 5 watts may not require controllers for maintenance charging. However, most systems need controllers to prevent battery damage and optimize performance.
Which is better for solar systems PWM or MPPT?
MPPT controllers provide 20-30 percent more efficiency than PWM models. Therefore, MPPT works best for systems above 200 watts despite higher initial costs.
How long do solar charge controllers last?
Quality controllers typically last 10-15 years with proper maintenance. However, cheap models may fail within 2-3 years of regular use.
Do charge controllers work with lithium batteries?
Modern controllers support lithium batteries with proper programming. Specifically, ensure your controller offers lithium-compatible charging profiles before purchasing.
What happens if my charge controller fails?
Controller failure can cause battery overcharging or undercharging issues. Therefore, install fuses and monitor system performance regularly to detect problems early.
