30A 12V 24V 48V Wifi MPPT Solar Charge Controller for Lead-acid Battery
-
Estimated Delivery:Aug 31 - Sep 04
-
Free Shipping & Returns: On all orders over $200
30A 12V 24V 48V Wifi MPPT Solar Charge Controller for Lead-acid Battery

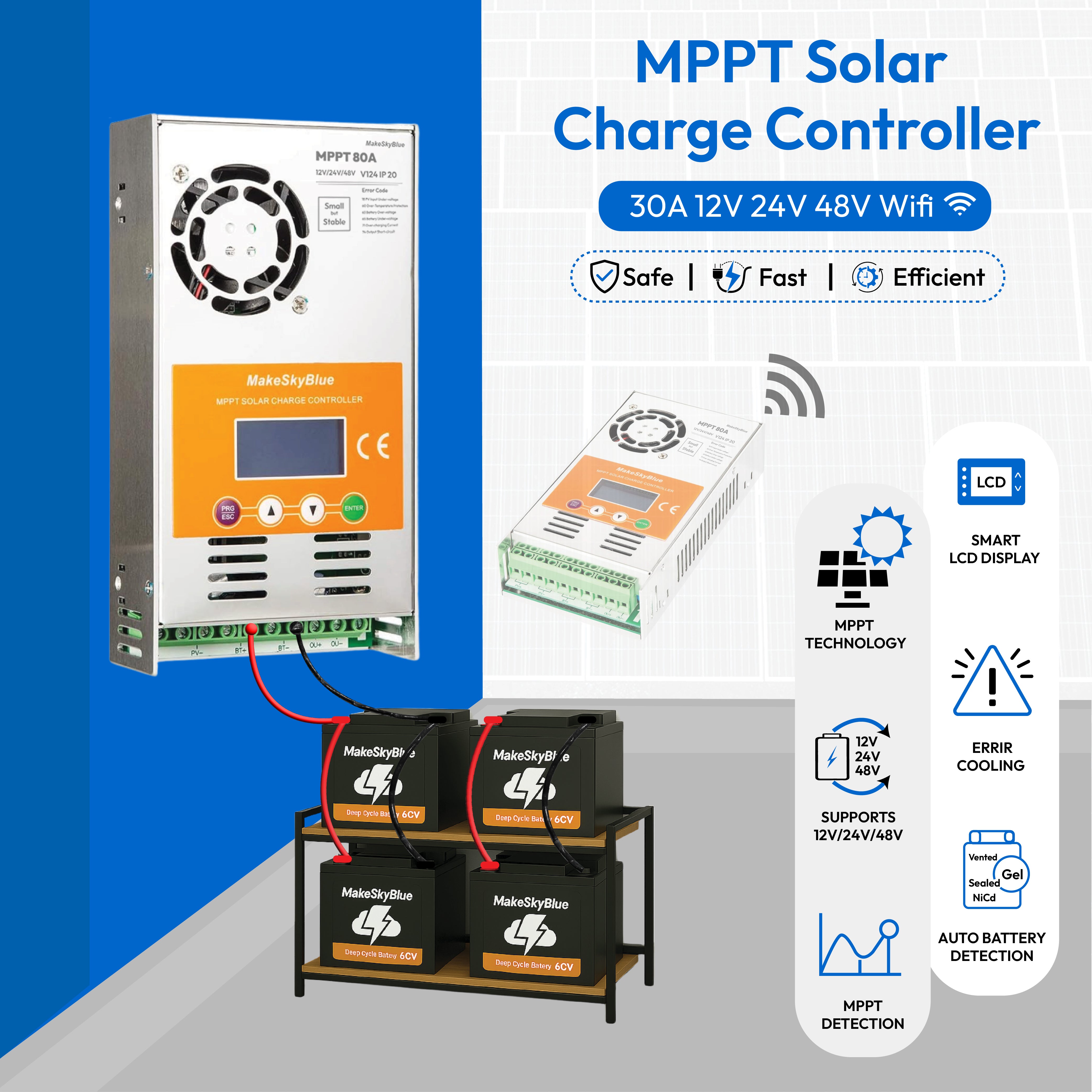

30A MPPT Solar Charge Controller with Wifi
➤ 100% MPPT Controller
➤ Intelligent Maximum Power Point Tracking Technology
➤ Built-in High-Performance DSP Controller
➤ Automatic Battery Voltage Detection – 12V / 24V / 48V

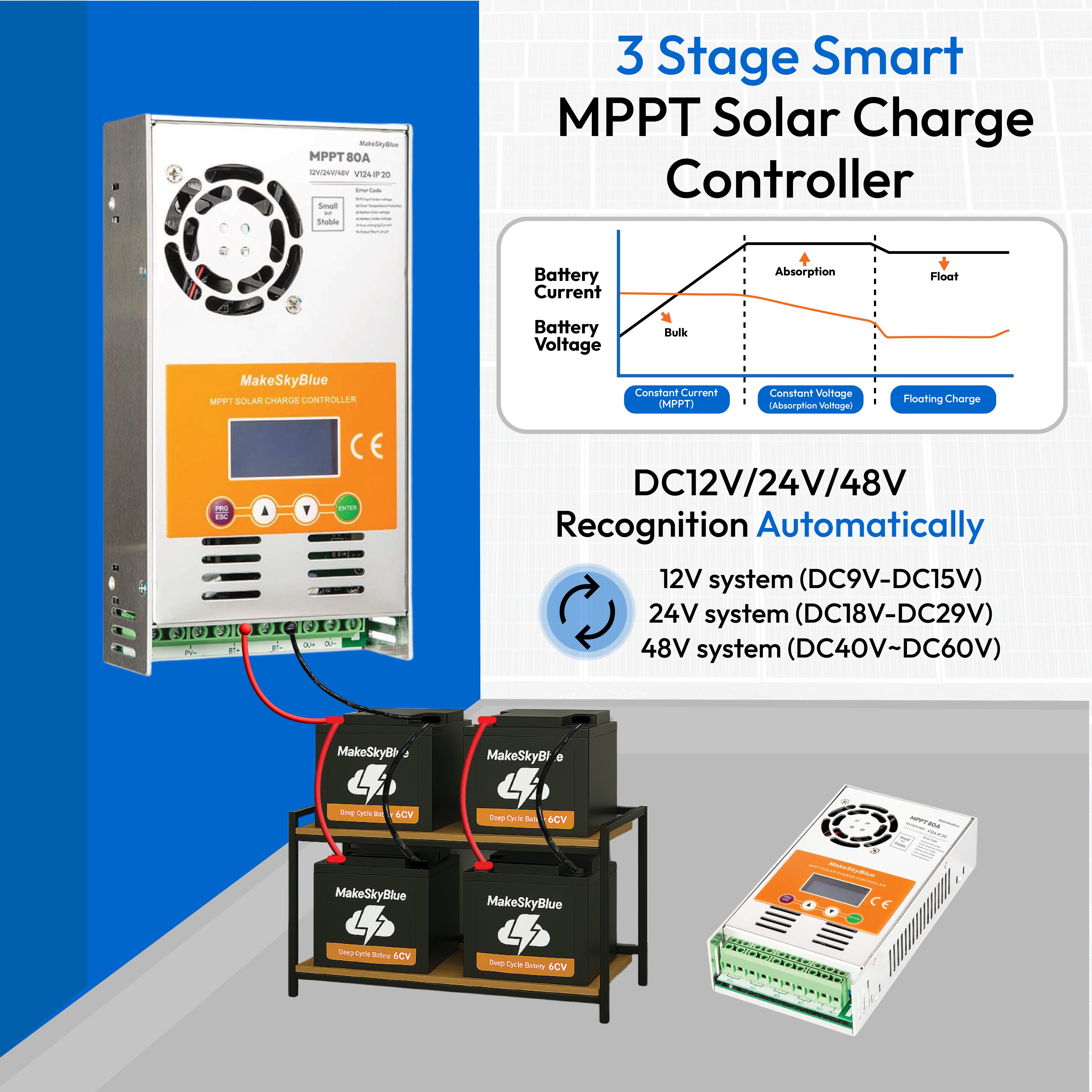

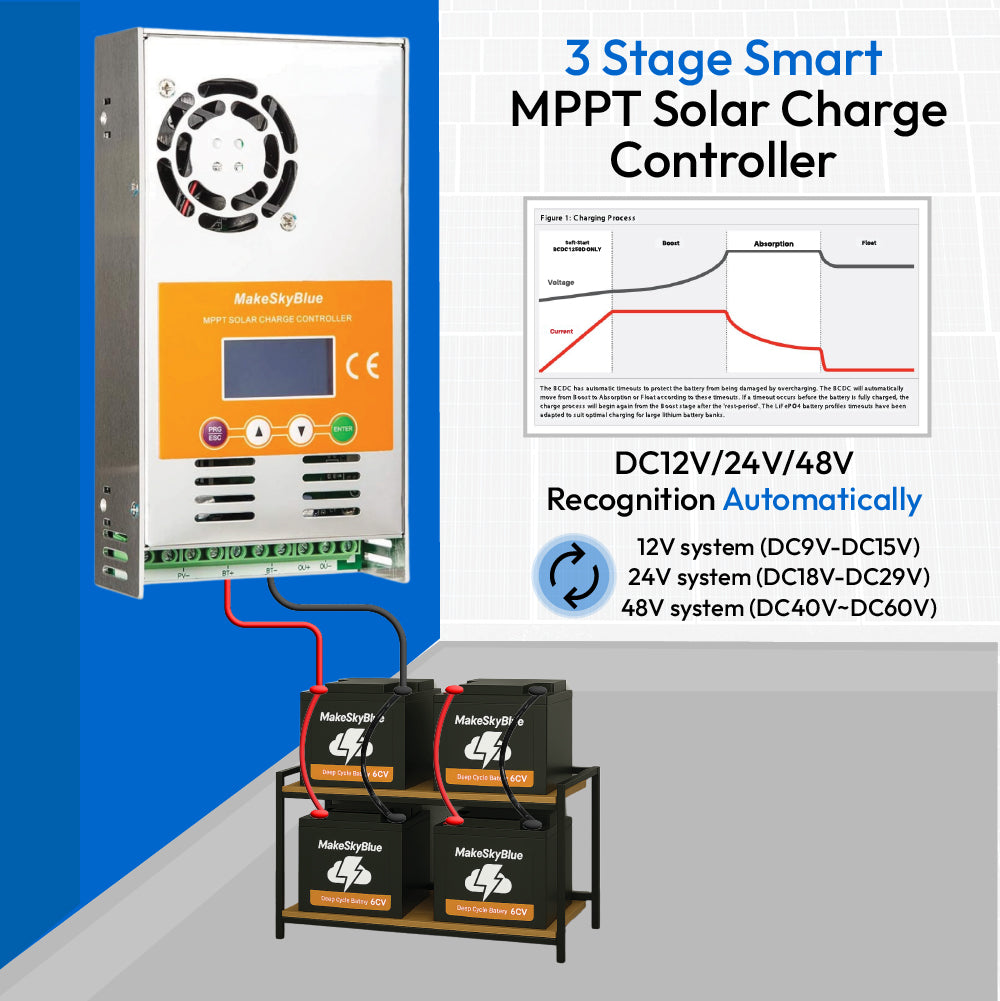

➤ Three-Stage Charging optimizes battery performance
➤ Multi-Function LCD Displays
➤ Output Limited Current Protection
➤ Overcharge Protection
➤ Over-Temperature Protection
➤ Easy Wall Mount Installation
➤ No Extra Device Needed for parallel operation
➤ Unlimited Parallel Connections Supported

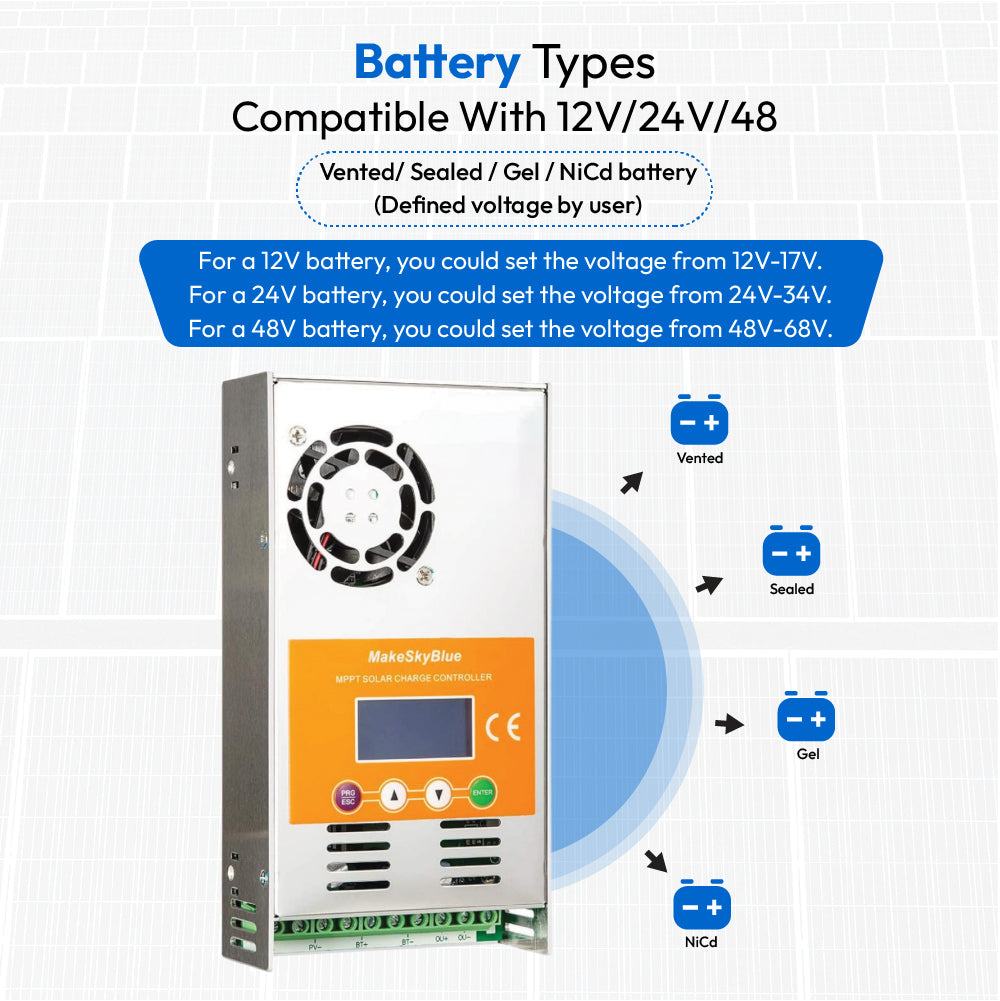

➤ Compatible Battery Types – sealed lead acid, vented, and gel battery
| Specification | Value |
|---|---|
| Maximum Efficiency | ≥98.2% |
| PV Utilization | ≥99% |
| Rated Output Current | 30A |
| System Recognition | DC12V/24V/48V Automatic |
| Maximum PV Power | 12V: 360W 24V: 720W 48V: 1400W |
| PV Input Voltage Range | 12V: DC20V-80V 24V: DC37V-105V 48V: DC72V-160V |
| Battery Types Supported | Vented / Sealed / Gel / NiCd User-defined voltage |
| Self Consumption | ≤1.2W |
| Response Time | 100μs |
| Soft Start Time | ≤1 Second |

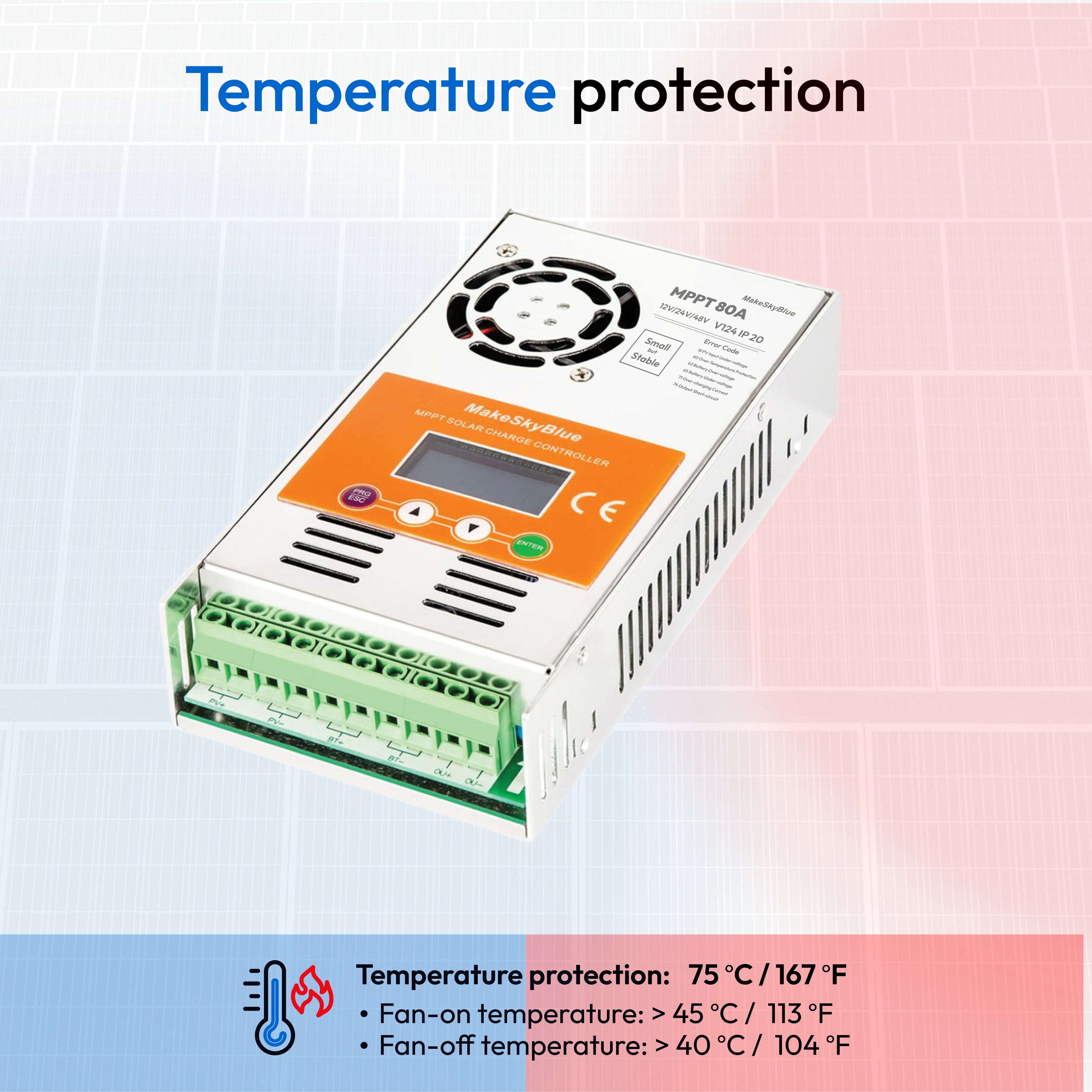

| Temperature Protection | 75°C / 167°F Fan: ON >45°C, OFF <40°C |

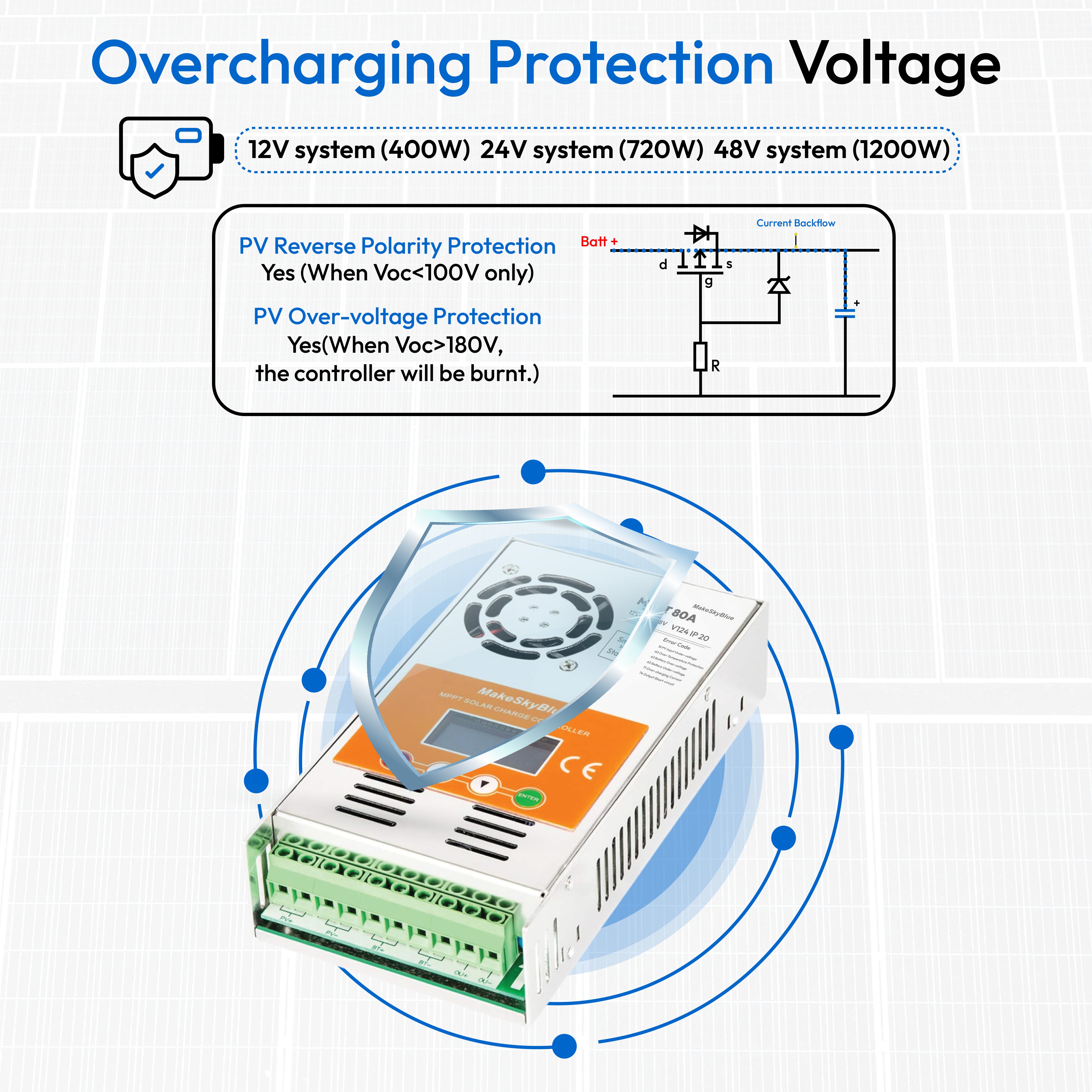

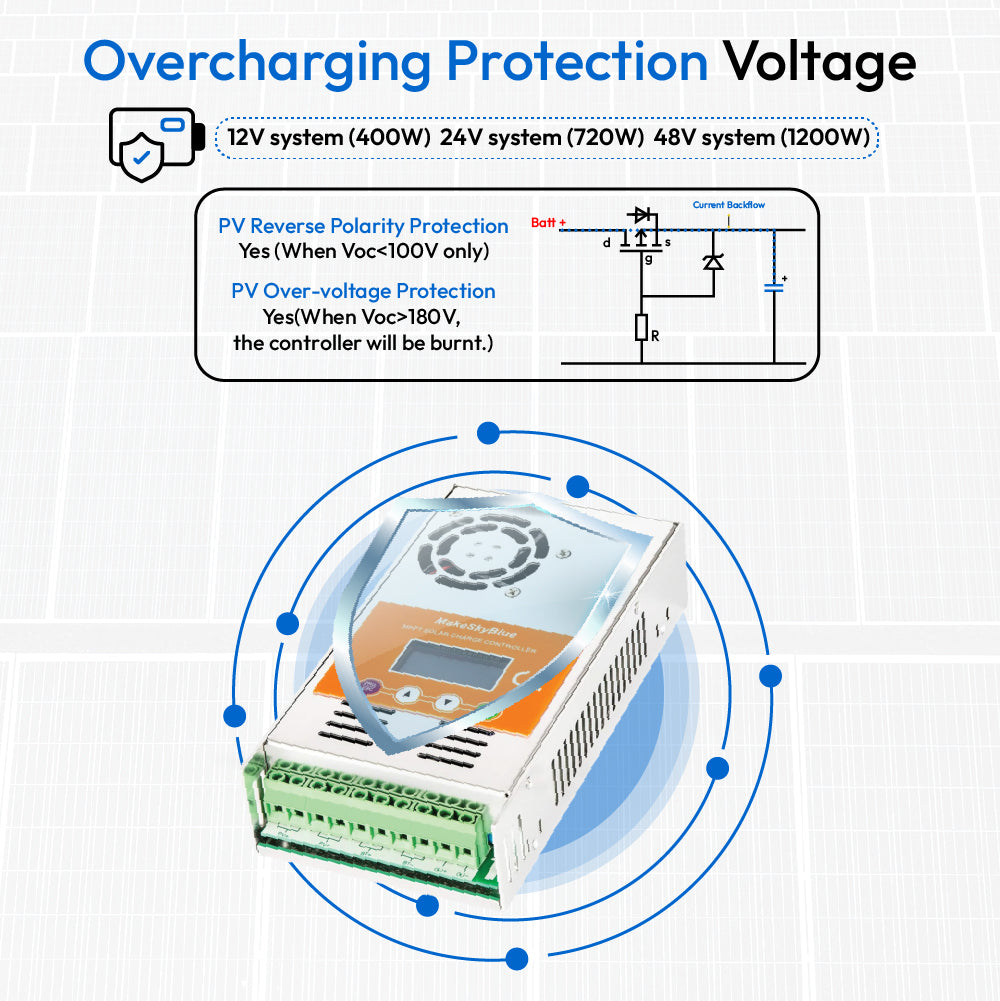

| Protection Features | Overcharge, Reverse Polarity, Over-voltage, Low Voltage |
| Operating Temperature | -20°C ~ +55°C / -4°F ~ +131°F |

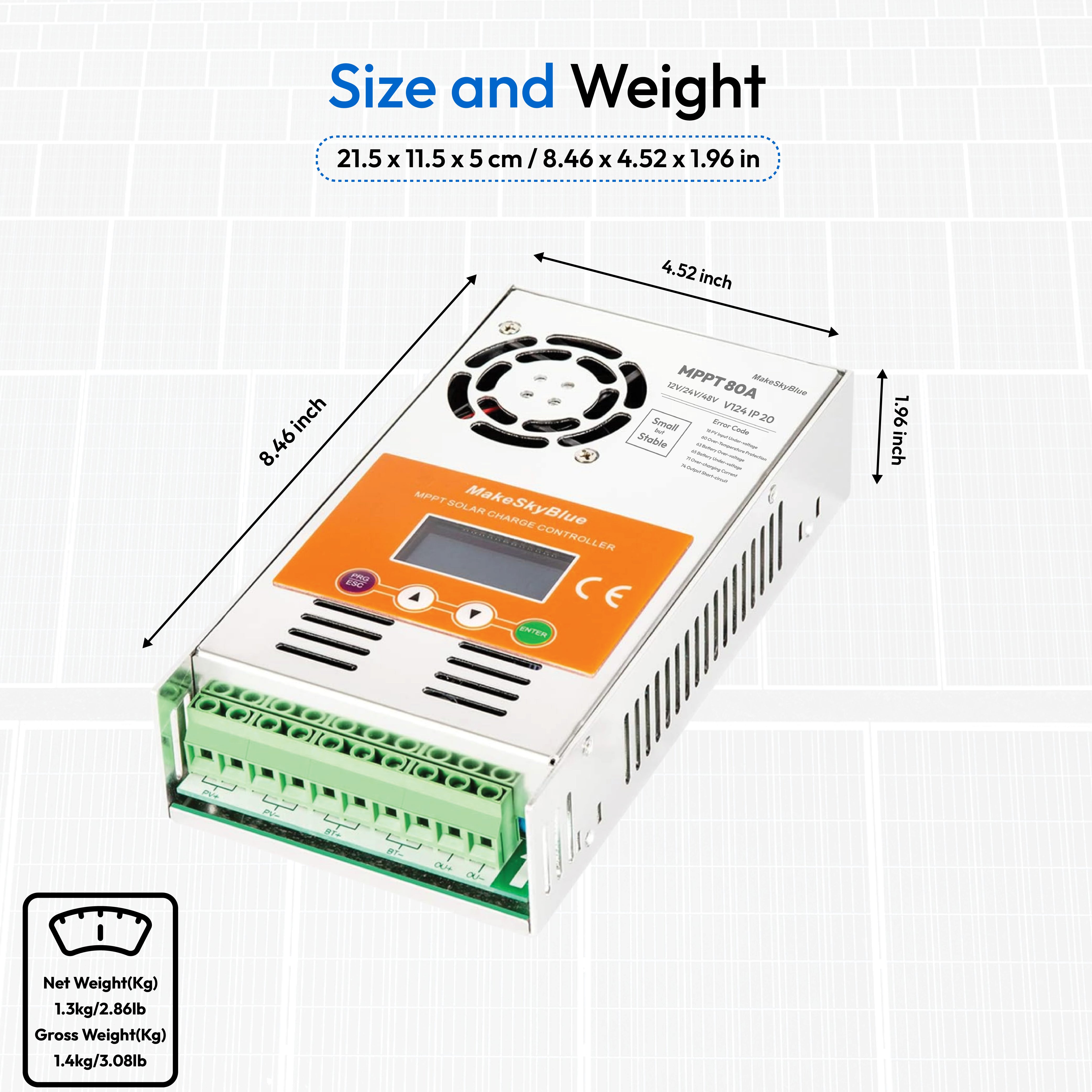

| Dimensions | 21.5×11.5×5 cm / 8.46×4.52×1.96 in |
| Weight | 1.3kg / 2.86lb |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

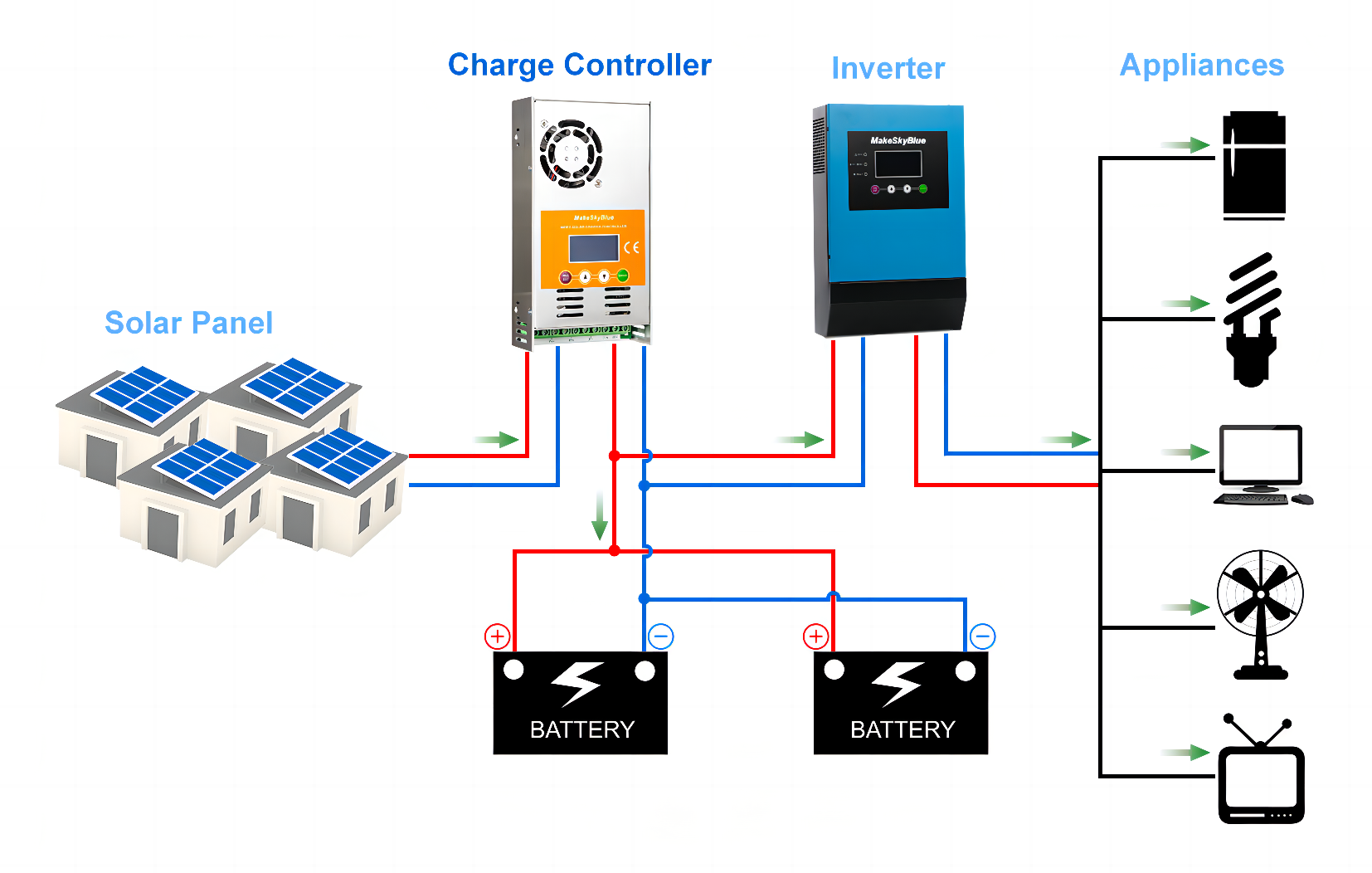

Complete Solar Power System Integration

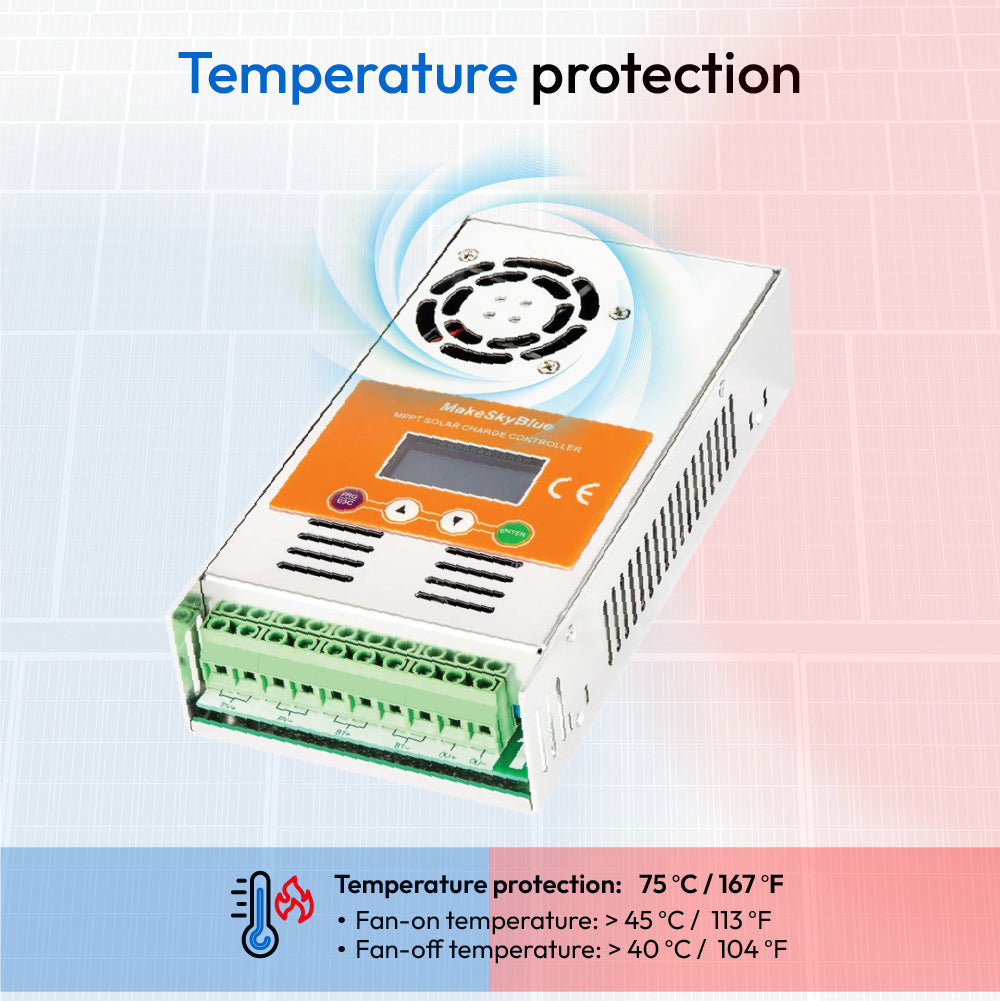

Temperature Protection with Automatic Cooling
